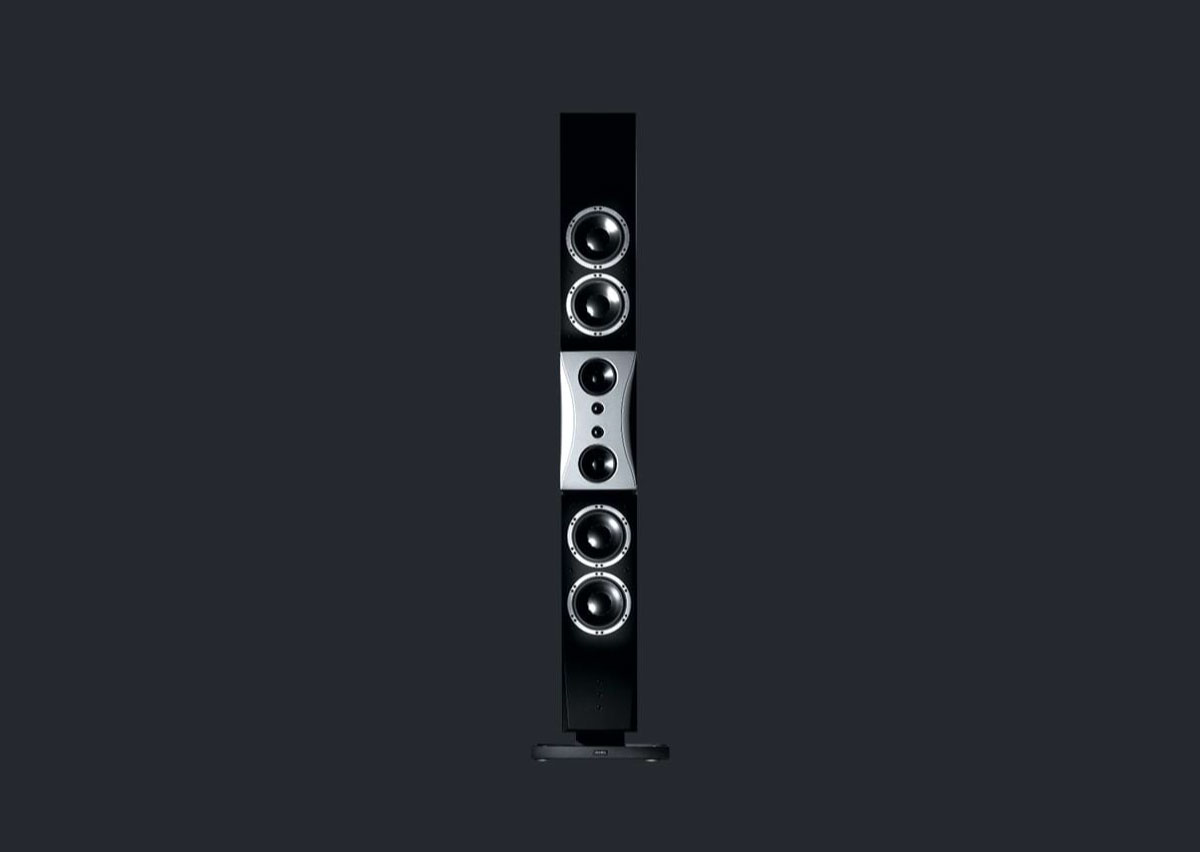

Launched in 1999, this gem represents a milestone in state-of-the-art loudspeaker technology and has set new standards in performance and product design.

In a modular cabinet construction, a complement of Dynaudio’s most advanced driver designs comprised of four woofers, two midrange drivers and two soft dome tweeters are positioned in a vertically symmetric array.

The highly-sophisticated crossover balances these ultra-high performance drivers by implementing DDC, reducing room reflections and delivering incredibly authentic and faithful music reproduction.

The Evidence Master is comprised of three individual interlocking sections. The technically identical upper and lower cabinet sections house the bass drive units, while the middle section contains the midrange and treble drive units as well as the crossover, the latter being further isolated within its own individual sub-compartment. This construction offers a tremendous performance advantage, as each section can be optimized for the differing requirements of precise bass, midrange and high frequency reproduction.

The middle section features a massive CNC-machined solid aluminum baffle which houses two special Dynaudio MSP (Magnesium Silicate Polymer) cone midrange drivers and two perfectly matched and meticulously selected Dynaudio coated soft-dome tweeters.

The elegant design of the aluminum baffle is a direct result of geometric optimization for absolutely perfect sound dispersion. The mechanical properties of aluminum, in conjunction with the mass of the middle section guarantee perfect resonance control – reproduction of high frequencies remains completely uncolored so even the finest musical details are precisely resolved.

Technical specifications

Sensitivity: 92dB (2,83V / 1m)

IEC Power Handling: 600W

Impedance: 4 Ohms

Frequency Response (± 3 dB): 27Hz – 26kHz

Box Principle: Bass Reflex Rear Ported

Crossover: 3 (5) way

Crossover Frequencies: (250), 400, 2500, (7500)Hz

Crossover Topology: 1st order

Woofer: 4 x 20cm MSP

Midrange: 2 x 15cm MSP

Tweeter: 2 x 28mm Esotar

Weight: 135kg / 298lb

Dimensions (W x H x D): 240 x 2050 x 580mm

 9.4 x 80.7 x 22.8in

Dimensions with feet/grill (W x H x D): 450 x 2050 x 580mm

 17.7 x 80.7 x 22.8in
