Surround Yourself with EFX

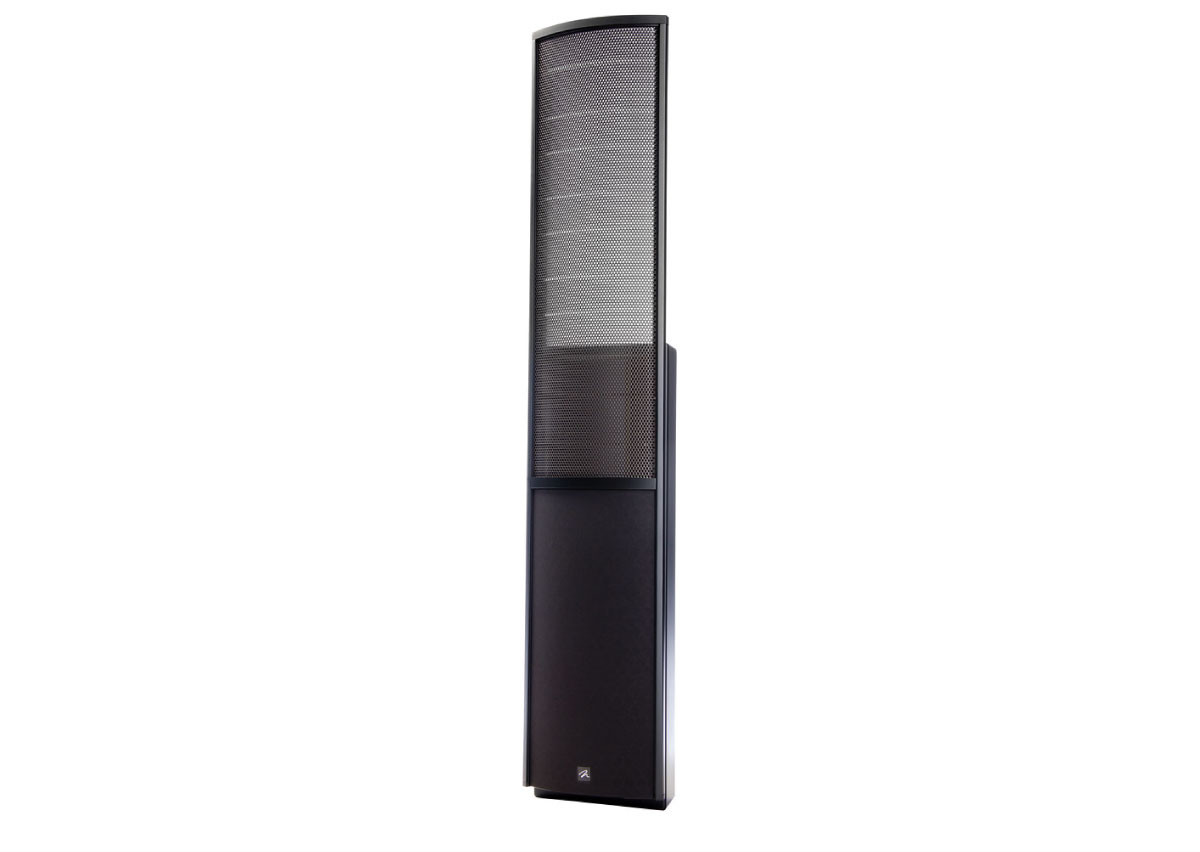

MartinLogan is proud to introduce the slim, on-wall EFX™ hybrid electrostatic loudspeaker, featuring XStat™ technology, dramatically reducing cabinet size, yet establishing new standards for efficiency, dynamics and precision.

CLS™ XStat Transducer

Housed within a radical, ultra-ridged extruded aluminum AirFrame™, the EFX's new CLS XStat transducer builds upon the legacy of MartinLogan's electrostatic heritage with the incorporation of advanced vacuum bonding and MicroPerf stat panels, providing even greater efficiency and precision.

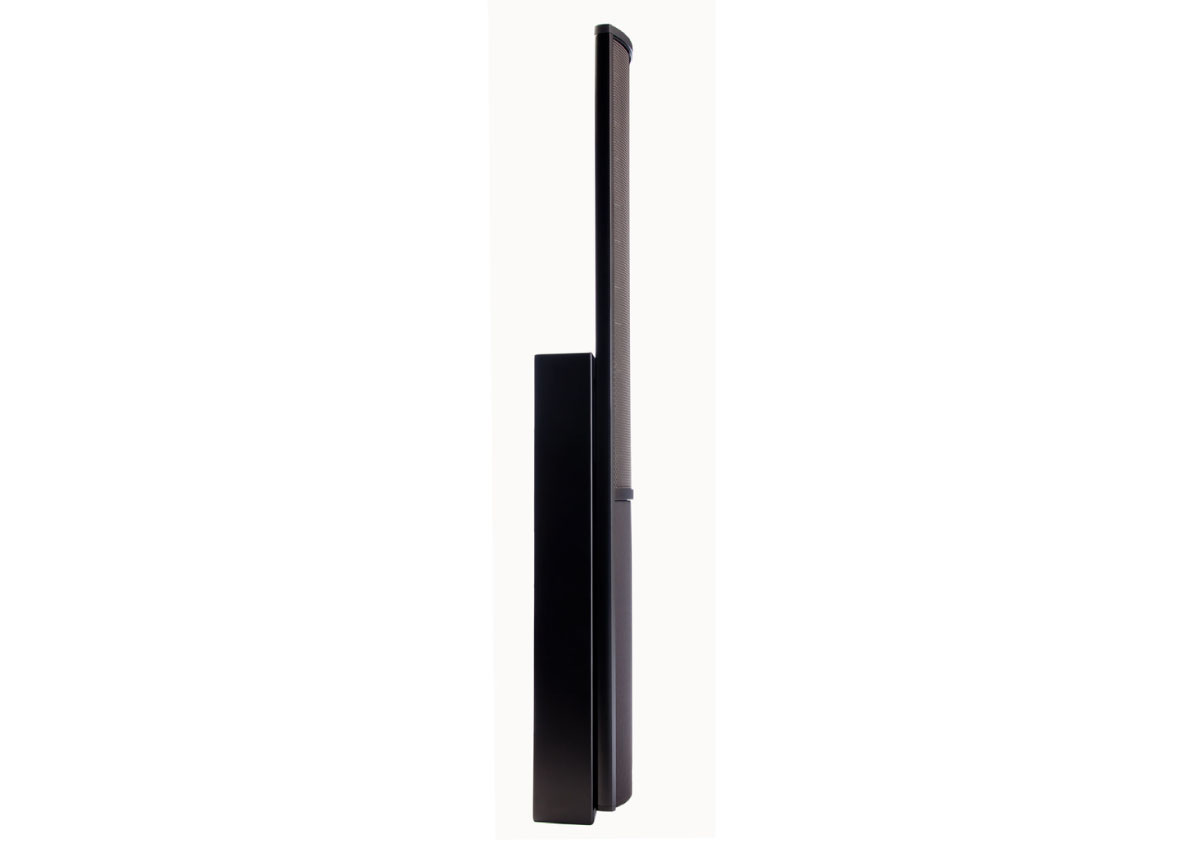

Slim On-Wall Profile

If you won't settle for anything but electrostats next to your new flatscreen TV, the EFX is the perfect solution at just 6.5-inches deep. Free up precious floorspace by mounting EFX to your wall with the included wall brackets. The EFX is also the ultimate high-performance home theater surround speaker and complements MartinLogan's entire line of electrostatic loudspeakers. EFX rotates with the pivoting wall bracket to easily focus your surround sound experience.

Advanced Vojtko Filtering

Proprietary Vojtko filtering technology is utilized for EFX's electrostatic transducer. This audiophile quality network, derived from the CLX, is carefully hand-built using precision point-to-point wiring, polypropylene capacitors, massive air-core coils, and a custom wound E-I core transformer—flawlessly preserving micro-acoustic subtleties while effortlessly handling the broadest range of dynamics contained within even the most demanding sonic source.

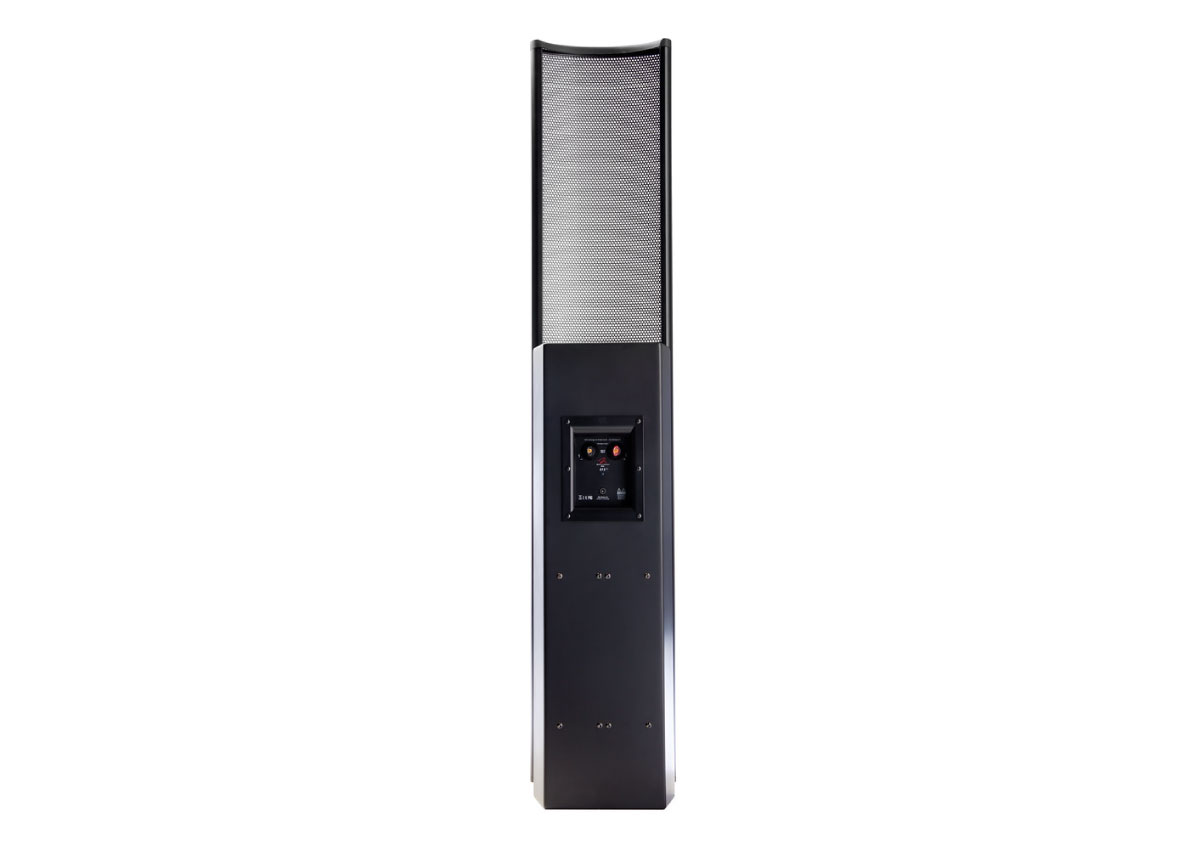

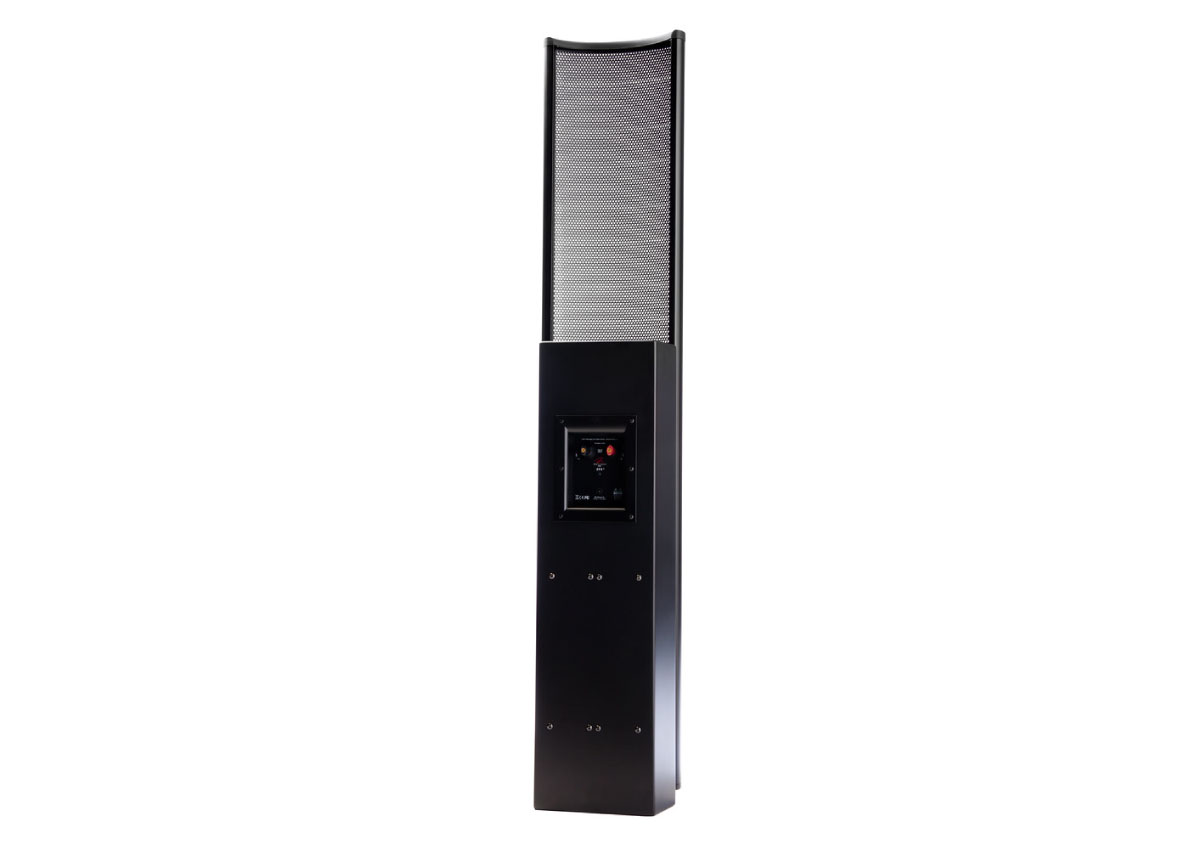

Custom 5-Way Binding Posts and Low-Voltage Power Supply

MartinLogan's proprietary tool-less binding posts simplify cable connection and management. EFX features custom 5-way binding posts and provide the ultimate level of flexibility for connection and setup. To further simplify setup and cable management, the EFX features a low-voltage DC power supply eliminates the need for a traditional, heavy IEC power cord.

Specifications

Specifications are subject to change without notice

Frequency Response 68–22,000 Hz ±3dB

Recommended Amplifier Power 20—300 watts per channel

Horizontal Dispersion 30°

Vertical Dispersion 28" (71cm) line source

Sensitivity 90 dB/2.83 volts/meter

Impedance 6 Ohms, 1.3 @ 20kHz Compatible with 4, 6, or 8 Ohm rated amplifiers.

Crossover Frequency 530Hz

High Frequency Transducer XStat™ CLS™ electrostaic transducer » Panel Dimensions: 28" x 8.6" (71 x 22cm) » Radiating Area: 241 in² (1,562 cm² )

Low Frequency Transducer 6.5" (16.5cm) high excursion, fiber cone with extended throw drive assembly; bass reflex

Components Custom-wound E-I core transformer, air core coils, metal film capacitors

Inputs Custom 5-way binding posts

Power Draw Max: 2W each Standby: <1W each

Weight 24.5 lbs. (11.1 kg)

Dimensions 48.8" x 9.4" x 6.5 " (123.9cm x 23.8cm x 16.5cm)
