Specifications

Specifications are subject to change without notice

Frequency Response 43–23,000 Hz ±3dB

Recommended Amplifier Power 20‒400 watts per channel

Horizontal Dispersion 30°

Vertical Dispersion 44" (112cm) line source

Sensitivity 90 dB/2.83 volts/meter

Impedance 4 Ohms, 0.8 at 20kHz. Compatible with 4, 6, or 8 Ohm rated amplifiers.

Crossover Frequency 425Hz

High Frequency Transducer XStat™ CLS™ electrostatic transducer

» Panel Dimensions: 44" × 9.2" (112 × 23cm)

» Radiating Area: 405 in2 (2,576 cm2)

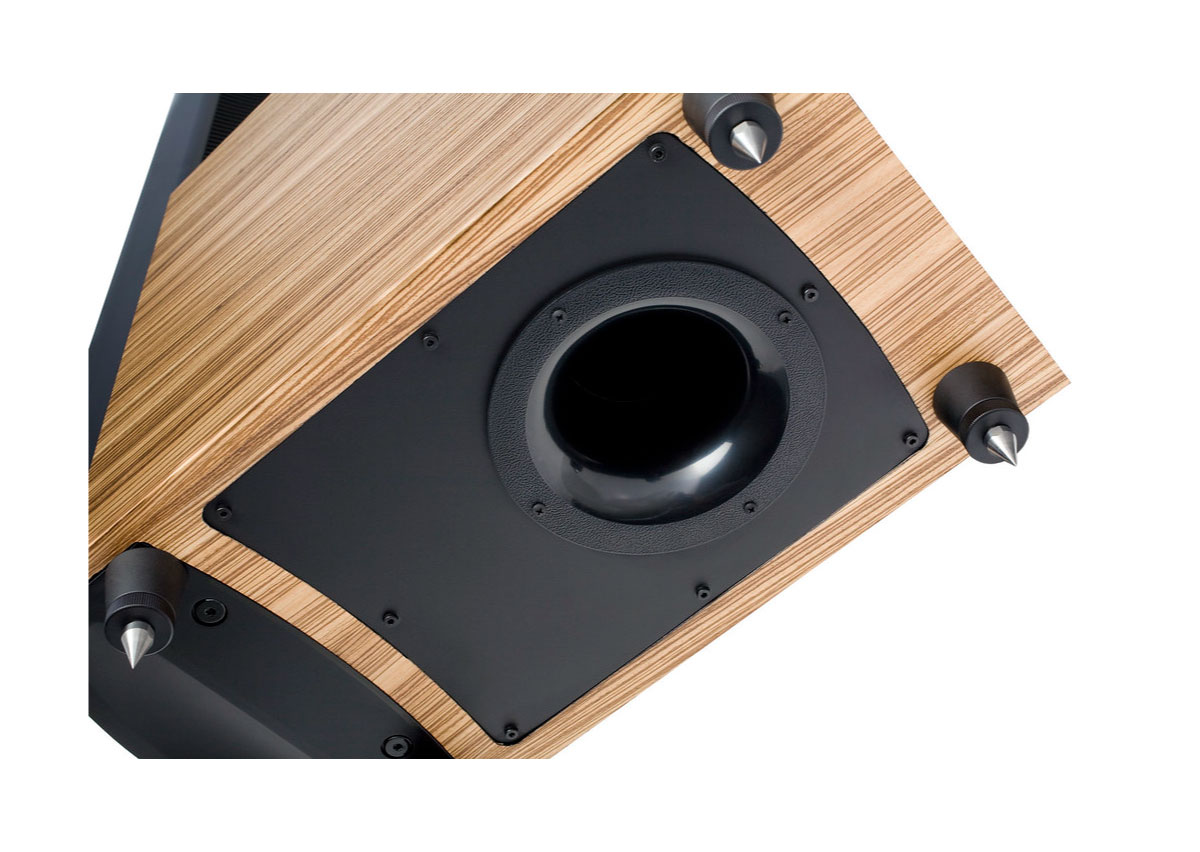

Low Frequency Transducer 8" (20.3cm) cast basket, high excursion, aluminum cone with extended throw drive assembly, non-resonance asymmetrical chamber format, down-firing bass reflex port.

Components Custom-wound E-I core transformer, air core coils, polypropylene capacitors.

Inputs Custom 5-way bi-wire tool-less binding posts

Power Draw Idle: < 1W/channel

Max: 2W/channel

Weight 43 lbs. (19.5 kg)

Dimensions 59.3" × 10.7" × 18.8"

(150.7cm × 27.3cm × 47.8cm)
