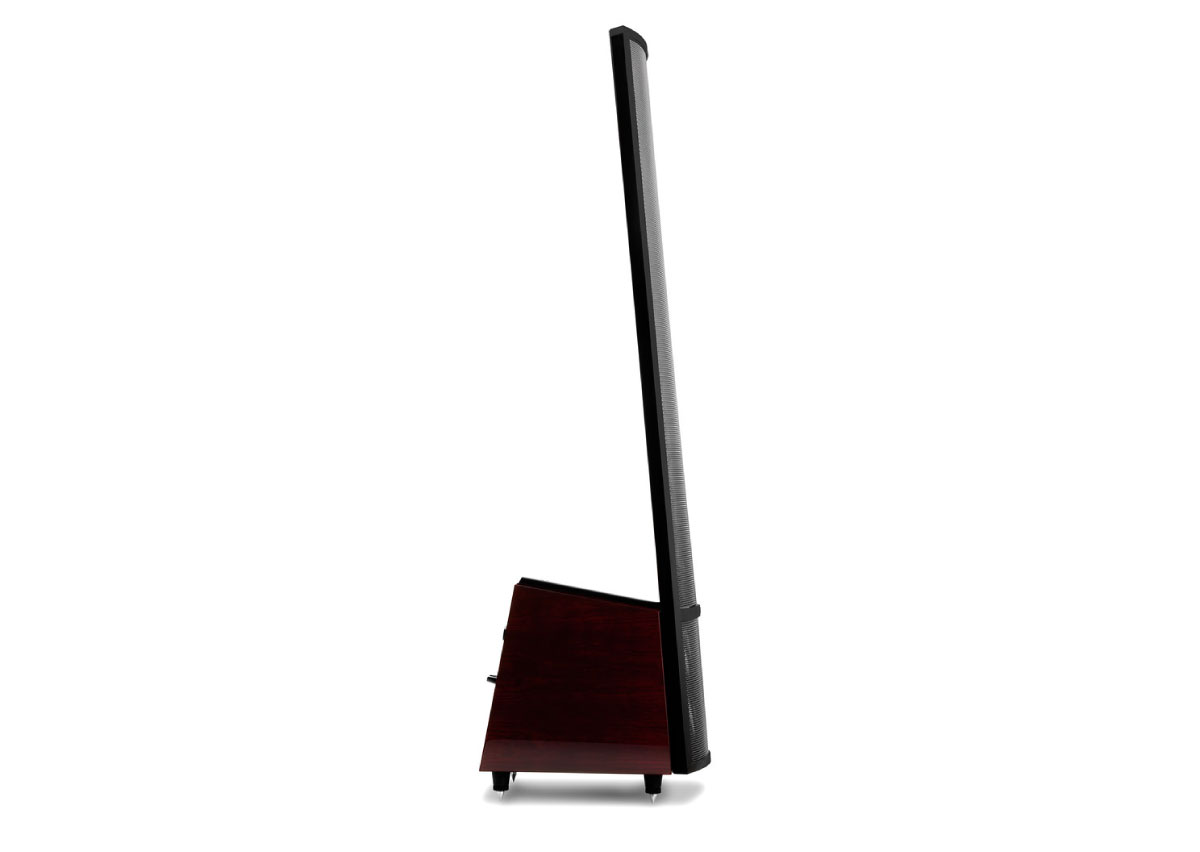

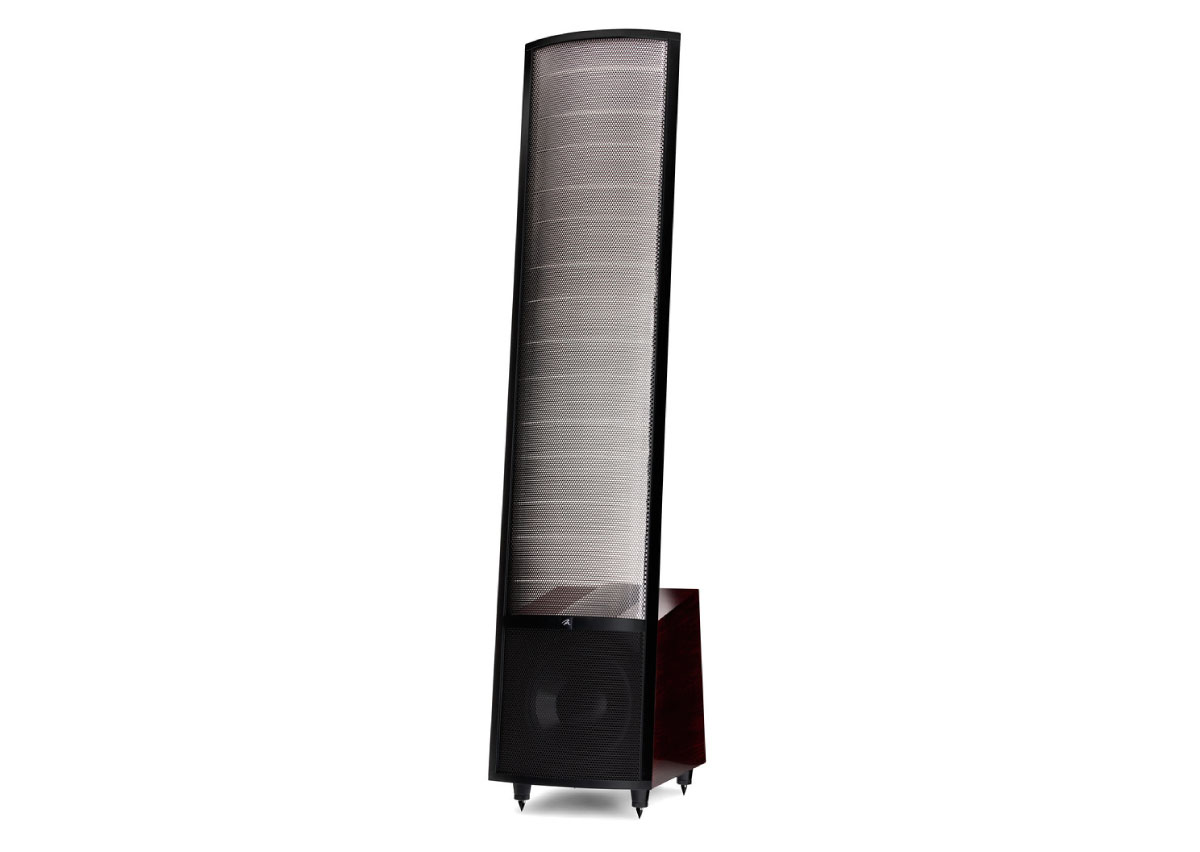

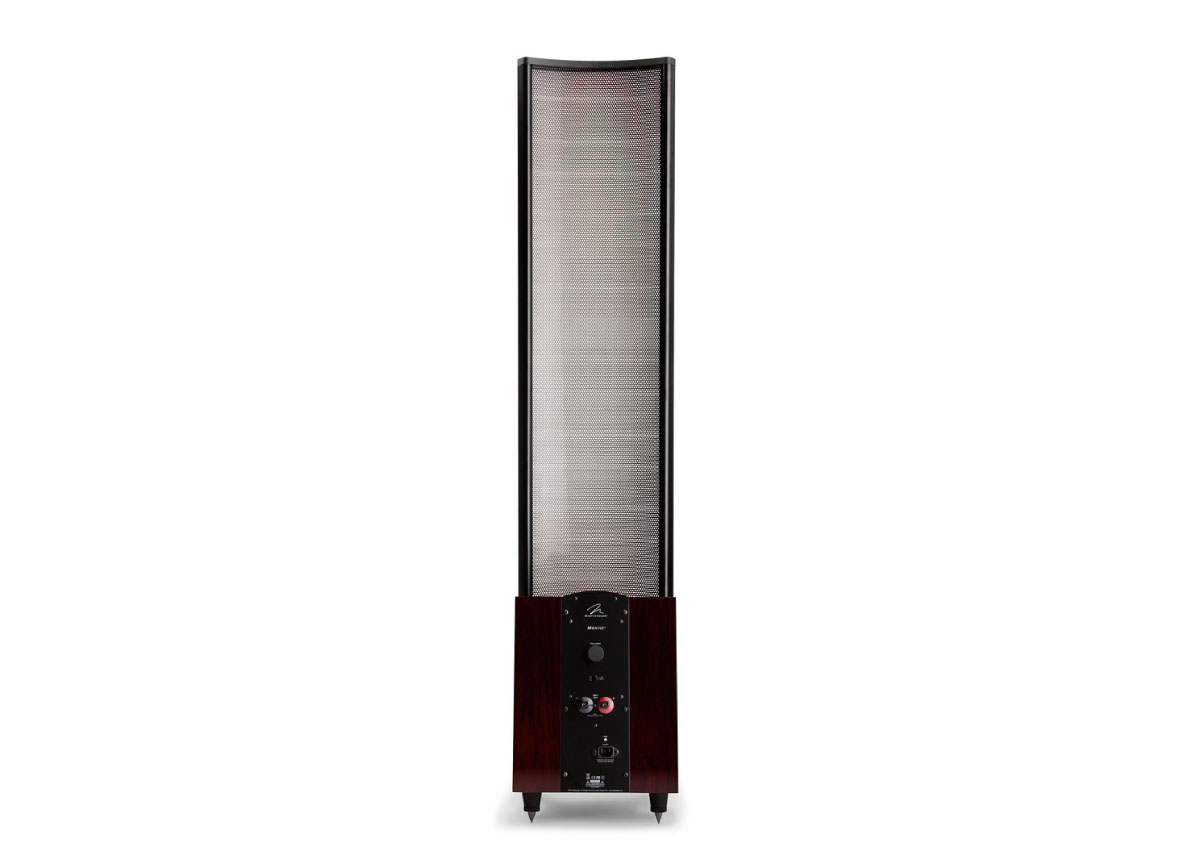

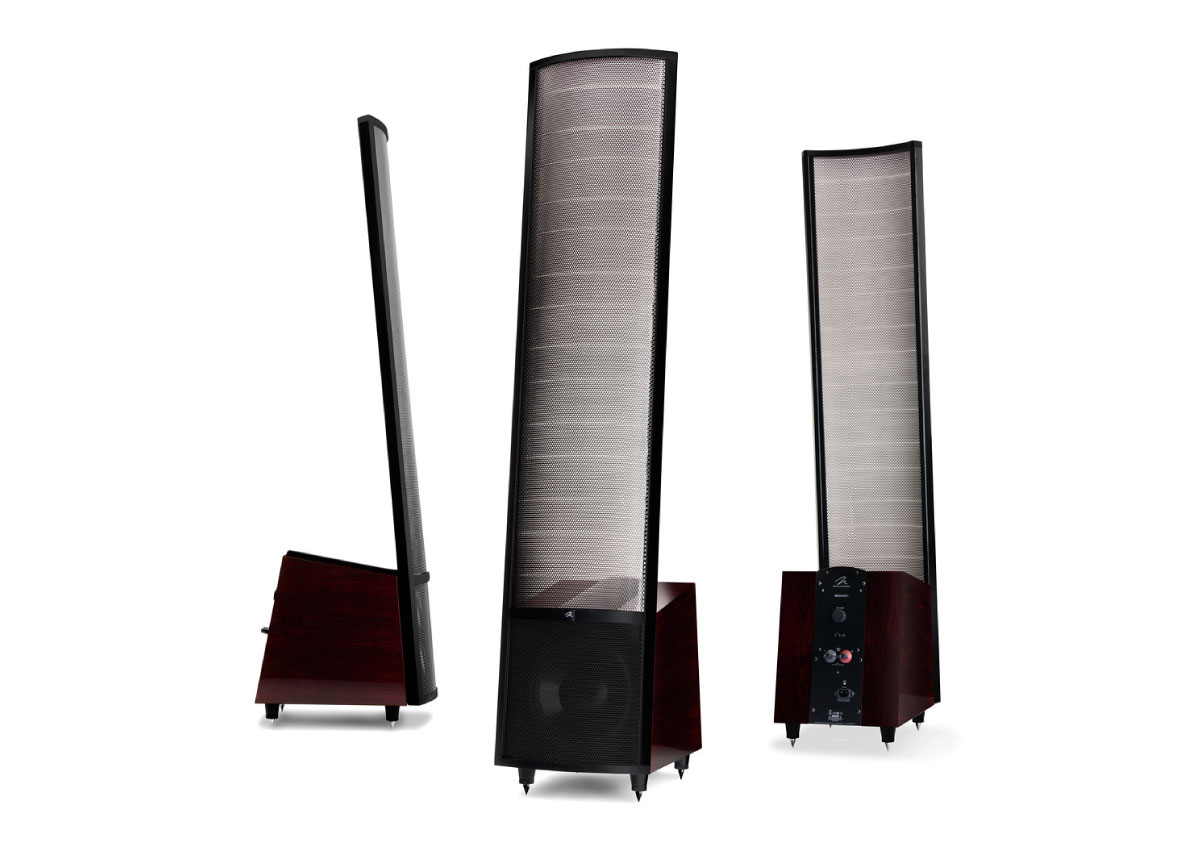

MONTIS
Able to reveal every subtle nuance of recorded sound with unflinching accuracy, Montis' ultra-rigid AirFrame, CLS™ XStat transducer and 24-bit Vojtko DSP engine deliver performance with magical precision and dynamics. Able to reveal every subtle nuance of recorded sound with unflinching accuracy, Montis' ultra-rigid AirFrame, CLS™ XStat transducer and 24-bit Vojtko DSP engine deliver performance with magical precision and dynamics. Housed within an ultra-rigid, extruded aluminum composite AirFrame™, Montis' CLS (Curvilinear Line Source) XStat™ transducer builds upon MartinLogan's nearly 30-year legacy of providing the highest quality electrostatic products. Advanced MicroPerf stator technology gives the latest-generation CLS electrostatic transducer almost twice as much exposed diaphragm surface, translating into higher efficiency and an effortless and unlimited dynamic presentation. The XStat pulls no punches. Montis uses an extremely precise 24-bit Vojtko™ DSP engine in conjunction with a powerful 200-watt class-D amplifier to deliver a stunningly detailed low-frequency performance reaching down to 29Hz—uncommon in cabinets this compact. Additionally, integrated low-frequency equalization below 100Hz further enhances bass performance by allowing precise tailoring to adjust for individual room acoustics.
฿370,000
฿333,000
Specifications
Specifications are subject to change without notice
Frequency Response 29–23,000 Hz ±3dB
Recommended Amplifier Power 20‒500 watts per channel
Horizontal Dispersion 30°
Vertical Dispersion 44" (112cm) line source
Sensitivity 91 dB/2.83 volts/meter
Impedance 4 Ohms, 0.52 at 20kHz. Compatible with 4, 6, or 8 Ohm rated amplifiers.
Crossover Frequency 340Hz
High Frequency Transducer XStat™ CLS™ electrostatic transducer
» Panel Dimensions: 44" × 11.3" (112 × 29cm)
» Radiating Area: 497 in2 (3,248 cm2)
Low Frequency Transducer 10" (25.4cm) cast basket, high excursion, aluminum cone with extended throw drive assembly, non-resonance asymmetrical chamber format.
Amplifier Woofer: 200 watts/channel (4 ohms)
Components Custom-wound audio transformer, air core coils, polypropylene capacitors. 24-bit DSP based pre-amplifier (used with woofer amplifier).
Audio Controls ±10dB under 100 Hz
Inputs Custom 5-way binding posts
Power Draw Idle: < 1W/channel
Max: 200W/channel
Lighting LED intensity control: on, dim, off
Weight 58 lbs. (26.3 kg)
Dimensions 59.3" × 12.7" × 18"
(150.5cm × 32.2cm × 45.7cm)
