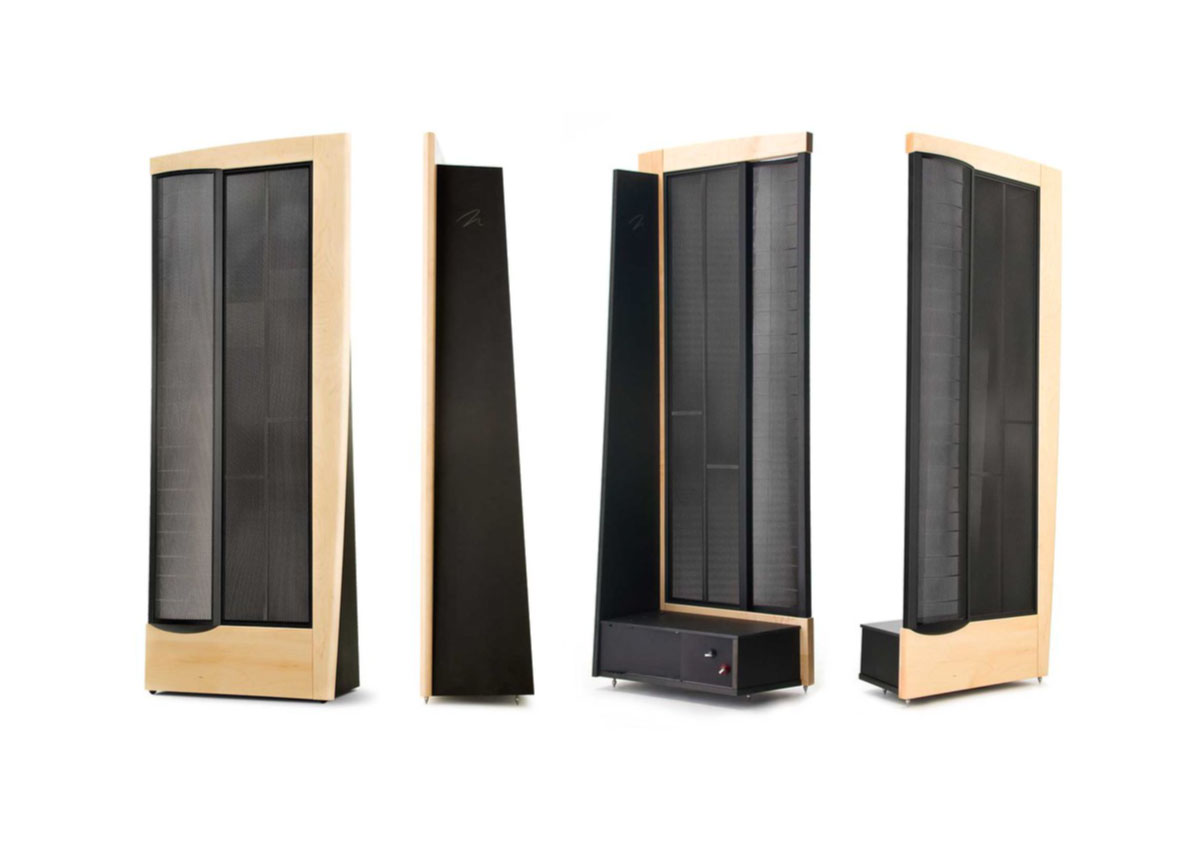

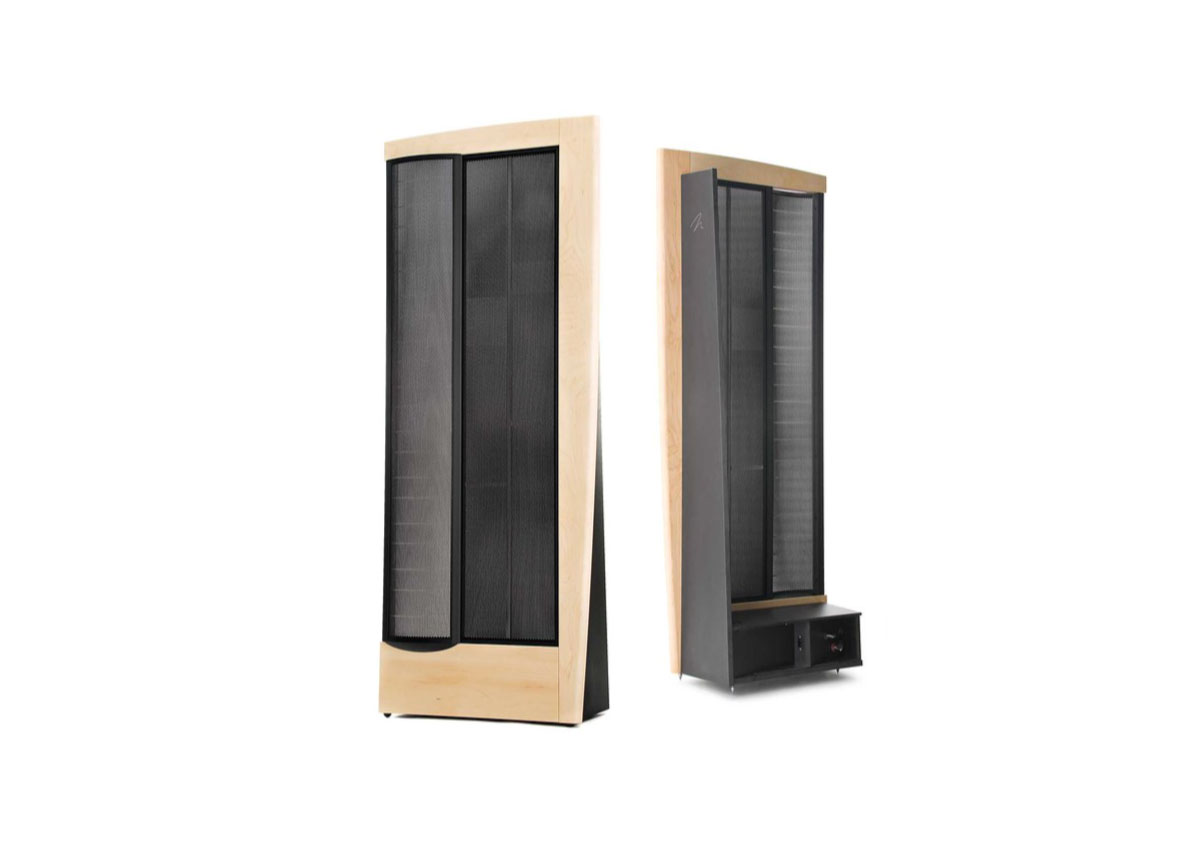

CLX art

MartinLogan is proud to announce a new edition of the world's finest full-range electrostatic line source loudspeaker. The CLX artincorporates our most popular upgrades including Art Frame styling (with an additional piece of hardwood), stainless steel binding posts, and premium power cords. Visit a MartinLogan Masterpiece Dealer and build yours today.

57-Inch CLS™ XStat™ Electrostatic Transducer

MartinLogan's award winning Curvilinear Line Source (CLS) XStat electrostatic (ESL) technology allows smooth unencumbered dispersion of sound throughout the listening area. The result? Perfectly etched imaging and focus achieved through minimal room interaction; optimum natural reproduction of sound with full level response from ultra-linear transducers; reliable operation in open air; compatibility with all electronics; and seamless dispersion of precise sound throughout your listening environment.

Advanced MicroPerf stator technology gives MartinLogan's latest-generation CLS electrostatic transducer almost twice as much exposed diaphragm surface as a traditional electrostatic panel of the same size. This dramatic increase in effective radiating area translates to higher efficiency and an even more effortless, unlimited dynamic presentation. The XStat pulls no punches!

But there's more to it than just putting more holes in the stators. ClearSpar™ spacers stiffen the assembly further across its width. ClearSpars enable precise, consistent tensioning of the Vacuum Bonded diaphragm without obstructing the floating, see-through look that is the visual hallmark of MartinLogan electrostats.

In the end, a speaker cannot outperform the signal feeding it. MartinLogan's state-of-the-art toroidal transformer and electrical interface engineering ensure an absolutely transparent link from amplifier to electrostatic panel. The result is sound of unparalleled purity, precision, clarity, and openness — the next best thing to no speaker at all.

Previous

Vacuum Bonding

The components of each XStat panel — two insulated, high-purity carbon steel stators, plasma-deposited PET diaphragm, and ClearSpar spacers — are fused into a cylindrical-section geometry with an aerospace adhesive whose hold strength exceeds that of welding. Our proprietary Vacuum Bonding process ensures uniform diaphragm tensioning and facilitates the extremely tight tolerances necessary for construction of such a precision transducer.

Curvilinear Line Source Electrostatic Panel

One of MartinLogan's original breakthroughs, CLS technology has been an essential ingredient of every electrostatic loudspeaker we've produced. Proprietary manufacturing methods enable construction of electrostatic panels as cylindrical sections. Their gentle horizontal curvature solves the problem of obtaining good high-frequency dispersion from a large radiating surface without compromising overall sound quality or reliability.

57-Inch DualForce™ Double Diaphragm, Triple Stator Low-Frequency Electrostatic Transducer With Dipole Phase Stabilization

CLX's unique DualForce double diaphragm, triple stator dipole low-frequency electrostatic transducer delivers deep, dynamic bass with twice as much force as a standard ESL. Additionally, CLX's low-frequency dipole stabilization technology reduces low frequency rear wave cancellation inherent to dipole transducers. This is accomplished by increasing the air path length behind the CLX and delaying the out-of-phase back wave. The resulting decrease in low-frequency front-wave cancellation increases overall output while minimizing total harmonic distortion at low frequencies.

Vacuum Bonding

The components of each XStat panel — two insulated, high-purity carbon steel stators, plasma-deposited PET diaphragm, and ClearSpar spacers — are fused into a cylindrical-section geometry with an aerospace adhesive whose hold strength exceeds that of welding. Our proprietary Vacuum Bonding process ensures uniform diaphragm tensioning and facilitates the extremely tight tolerances necessary for construction of such a precision transducer.

Curvilinear Line Source Electrostatic Panel

One of MartinLogan's original breakthroughs, CLS technology has been an essential ingredient of every electrostatic loudspeaker we've produced. Proprietary manufacturing methods enable construction of electrostatic panels as cylindrical sections. Their gentle horizontal curvature solves the problem of obtaining good high-frequency dispersion from a large radiating surface without compromising overall sound quality or reliability.

Next

• 1
• 2
• 3

Parts of a MartinLogan Electrostatic Transducer

High/Mid Frequency Range

• A) Plasma Bonded Diaphragm
• B) ClearSpar Spacers
• C) MicroPerf Stators

Parts of a MartinLogan DualForce™ Transducer

Low Frequency Range

• A) Plasma Bonded Diaphragm
• B) ClearSpar Spacers
• C) MicroPerf Stators

MicroPerf Stators

Although stators are the elements of an electrostatic driver that are supposed to stand still, they carry the audio signals that do the work of propelling the diaphragm back and forth to move air and produce sound. Because the stators sandwich the diaphragm between them, they must be perforated to allow sound to pass through. Yet they must also be rigid enough to remain absolutely stationary despite the strong electrostatic forces pushing and pulling at them during operation.

MartinLogan's MicroPerf design optimizes this tradeoff by reducing the size of the individual holes and using many more of them than in a traditional electrostatic panel. MicroPerf almost doubles effective diaphragm radiating area without compromising structural integrity. The resulting increase in output capability and efficiency allows a panel to be made much smaller without sacrificing performance — or to enjoy a substantial leap in bandwidth and dynamics without growing larger.

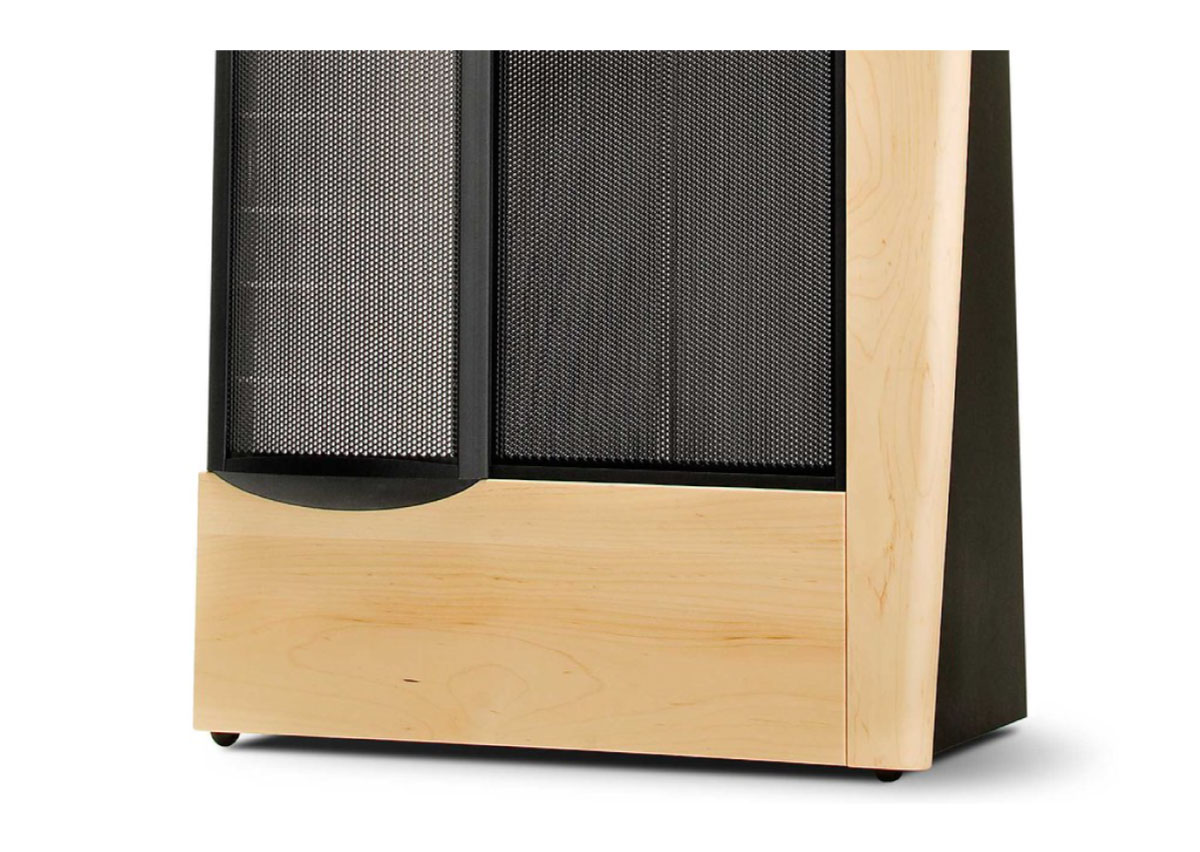

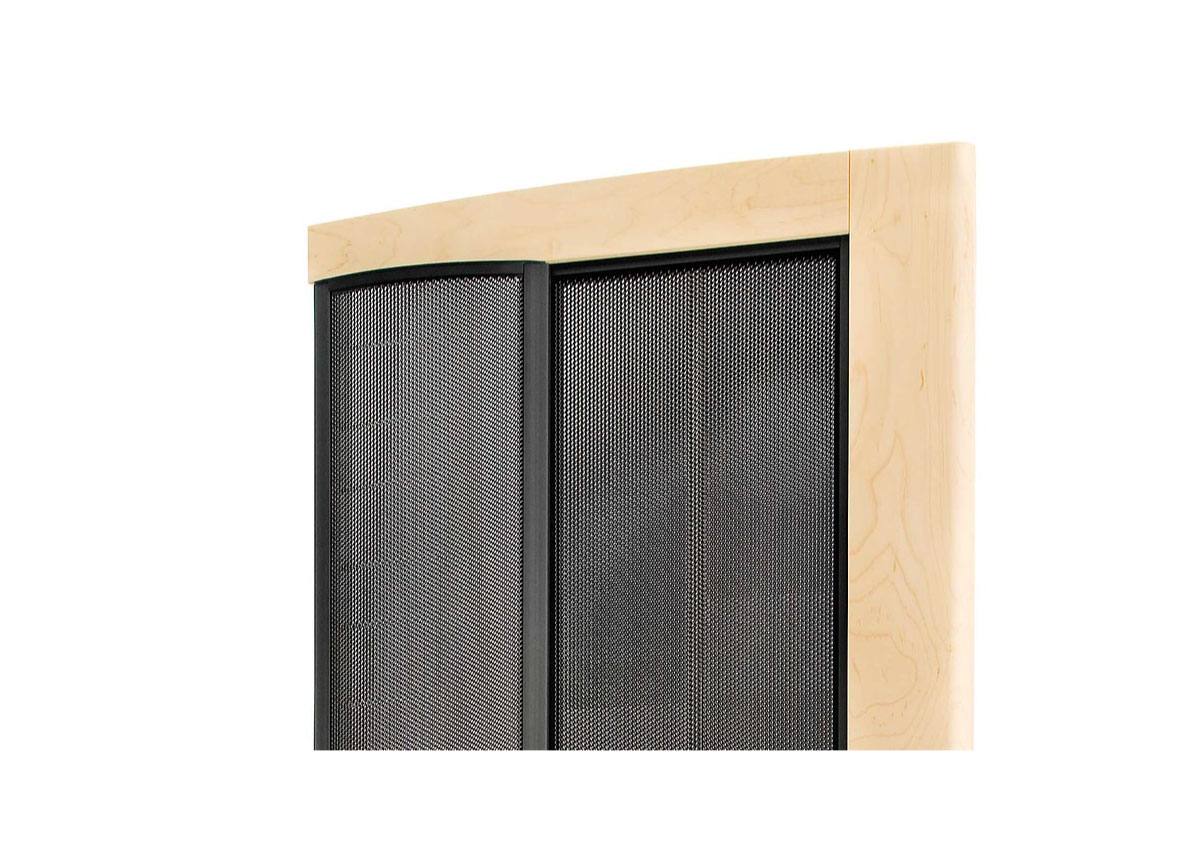

Hand-Rubbed Real-Wood

CLX art comes standard with a gently curved Art Frame and is available in 3 standard hand-rubbed, real hard-wood finishes; black ash, dark cherry, and maple. Premium high-gloss finish options* are also available.

* Premium high-gloss finishes take additional time to build and deliver, please talk to your local Reserve Dealer for more information.

Vojtko™ Filter Topology

Featuring an advanced proprietary Vojtko filter topology, MartinLogan electronic specialists hand-build each CLX filter utilizing only the finest of components and construction techniques to assure the cleanest, most precise signal path possible. The resulting precision filter flawlessly preserves even the smallest subtleties in sound while effortlessly handling the broadest range of dynamics contained within even the most demanding sonic source, whether used in a 2-channel audio system or dedicated home theater.

Within the interface module, a regulated power supply creates stable bias voltages even under the most extreme conditions. Dual transformer design utilizes a toroidal audio transformer for detailed mid- and high-frequencies, and a high-quality, high-voltage E.I. transformer for dynamic, linear bass. All high-voltage leads are made of the purest copper and coated with silicone. Only superlative materials, including thick film on alumina substrate resistors and polypropylene capacitors, are used throughout.

Custom CLX / Subwoofer Filters

Seamless blending between a subwoofer and full-range loudspeaker is, at the best of times, challenging—and when you're dealing with a no-holds-barred reference level product such as the CLX there is no room for error. The addition of an optional custom 'CLX filter' to the BalancedForce 210 and 212 subwoofers takes the headache out of achieving superb low-frequency performance.

The optional filter contains an optimized low pass filter that precisely matches the 56Hz low-frequency roll off of the CLX. Once this custom filter is installed, setup is only a matter of adjusting the phase and level of your sub. This custom filter is applied only to the left and right inputs of your subwoofer. The sub's LFE input remains unfiltered, which allows surround preamp/processors to send low-frequency information for the center, surround, and LFE channels without compromising the performance of your CLX.

EcoSound and Environmentally Conscious Design

Spectacular bass sound reproduction isn't the only technical breakthrough showing up in the new MartinLogan CLX. This incomparable full range electrostatic loudspeaker is also manufactured from the most beautiful, rigid and earth friendly material available — EcoSound. We chose EcoSound because the CLX design called for an extremely rigid structurally sound frame material. Also given our commitment to the use of earth-friendly manufacturing, we wanted a fully sustainable material as well.

EcoSound is the latest innovation to come from our partnership with Klip BioTechnologies, designers of sustainable manufacturing materials. It is a FSC certified 50/50 blend of renewable bamboo fiber and 100% post consumer recycled wood and/or paper fiber. These are permanently bonded together using water-based resin that is both petroleum and VOC free. Rigorous testing has found the EcoSound material used in the CLX to provide superior internal damping compared to MDF and other more traditional materials. This is a critical to maintaining the CLX's superior sonic clarity and lack of sonic cabinet contributions.

Beautiful, dense, durable, and made from 100% earth friendly materials, EcoSound has a unique natural surface texture with edges like smooth stone. EcoSound's rich black color will not fade from UV exposure over time. Additionally, the CLX's EcoSound surface provides superior scratch resistance and unlike traditional materials, it will not swell due to excessive humidity. It is simple to maintain with an occasional application of finishing oil.

Specifications

Specifications are subject to change without notice

Frequency Response 56–23,000 Hz ±3dB

Recommended Amplifier Power 20—450 watts per channel

Horizontal Dispersion 30°

Vertical Dispersion 57" (145cm) line source

Sensitivity 90 dB/2.83 volts/meter

Impedance 6 Ohms, 0.7 at 20kHz Compatible with 4, 6, or 8 Ohm rated amplifiers.

Crossover Frequency 360Hz

High Frequency Transducer XStat™ CLS™ electrostatic transducer. » Panel Dimensions : 57" x 8.6" (145 x 22cm) » Radiating Area : 490 in² (3,190 cm² )

Low Frequency Transducer DualForce™ double diaphragm, triple stator dipole low-frequency electrostatic transducer » Panel Dimensions : 57" x 11.5" (144.8 x 29.2cm) » Radiating Area : 656 in² (4,228 cm²)

Components Thick film on alumina substrate resistors, air core coils, polypropylene capacitors, and custom wound toroidal audio transformers

Inputs Custom binding posts

Lighting Light intensity dimmer controls

Weight 110 lbs. (50 kg)

Dimensions 70.32" x 25.75" x 14.69 " (178.6cm x 65.4cm x 37.3cm)
