Power Supplies & Noise Reduction

The Ear pushes the Brio-R power amplifier circuit concept to a new level with the use of a low noise, fully regulated, supply. Noise has also been kept to a minimum by the use of an external mains transformer. The Ear exceeds the voltage requirements of IEC 268-15. This along with low output impedance makes it suitable for studio use as well as a hi-fi headphone amplifier. The Ear operates in Class A at normal listening levels.

High Quality Components

The Ear utilises the highest quality components and our engineers’ experience, to achieve the best sonic performance. Utilising the design ideals of the ‘cascaded emitter follower output stage’ with a pair of complementary Darlington output transistors, along with polyester film and Nichicon FG capacitors in critical positions, ensures it is our most advanced performing headphone amplifier to date.

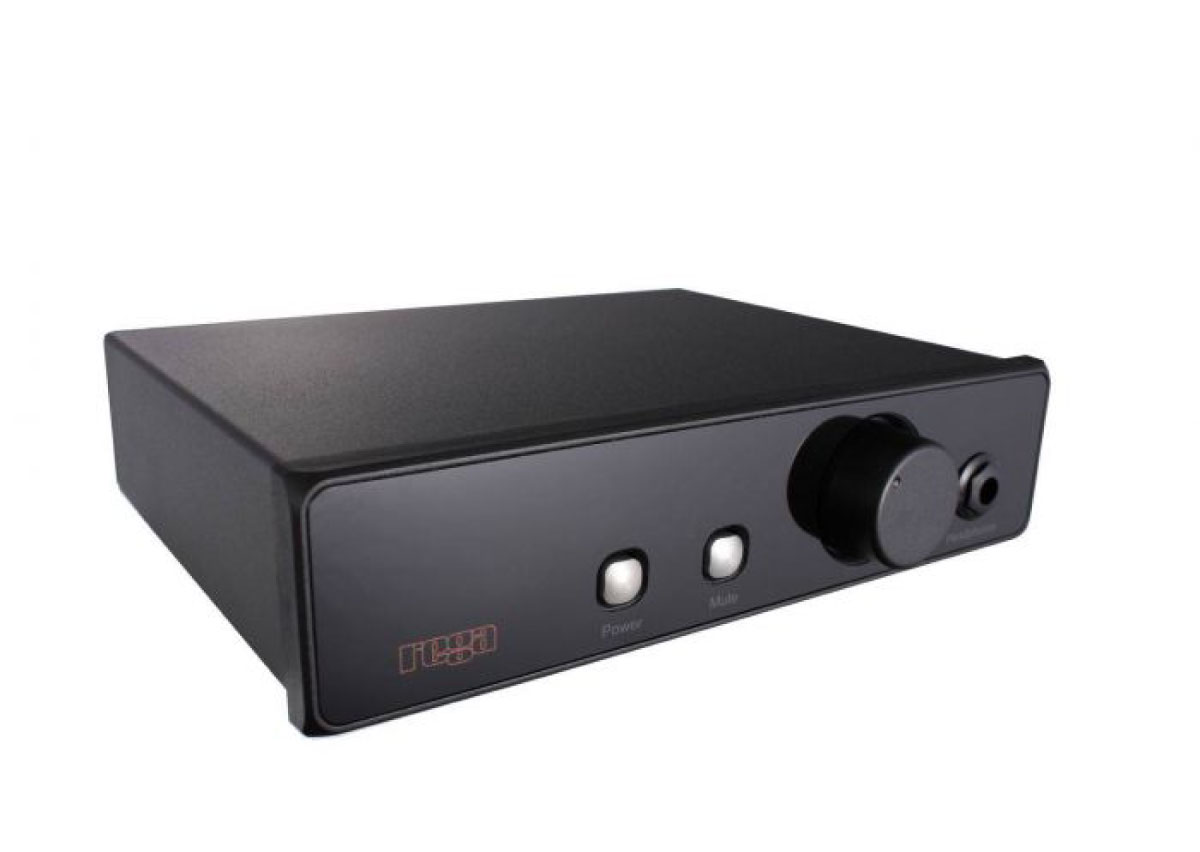

Custom Case

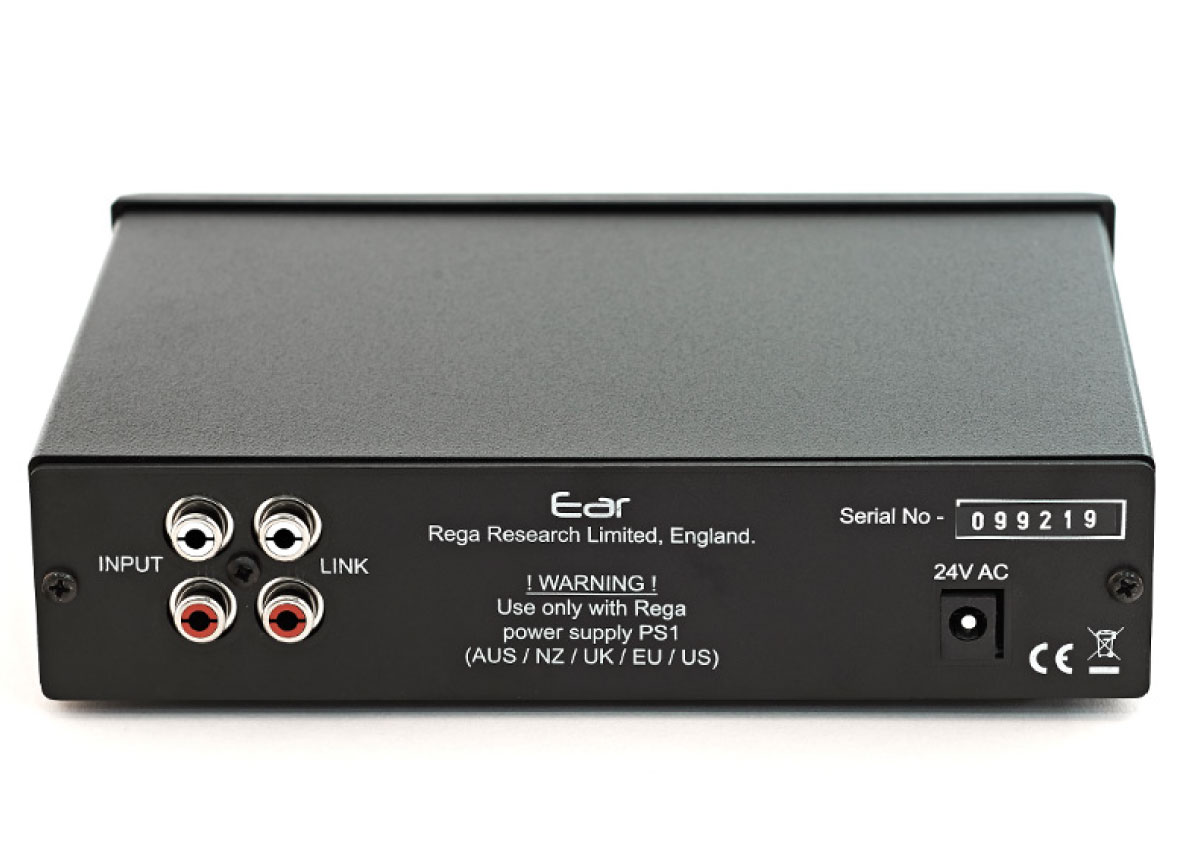

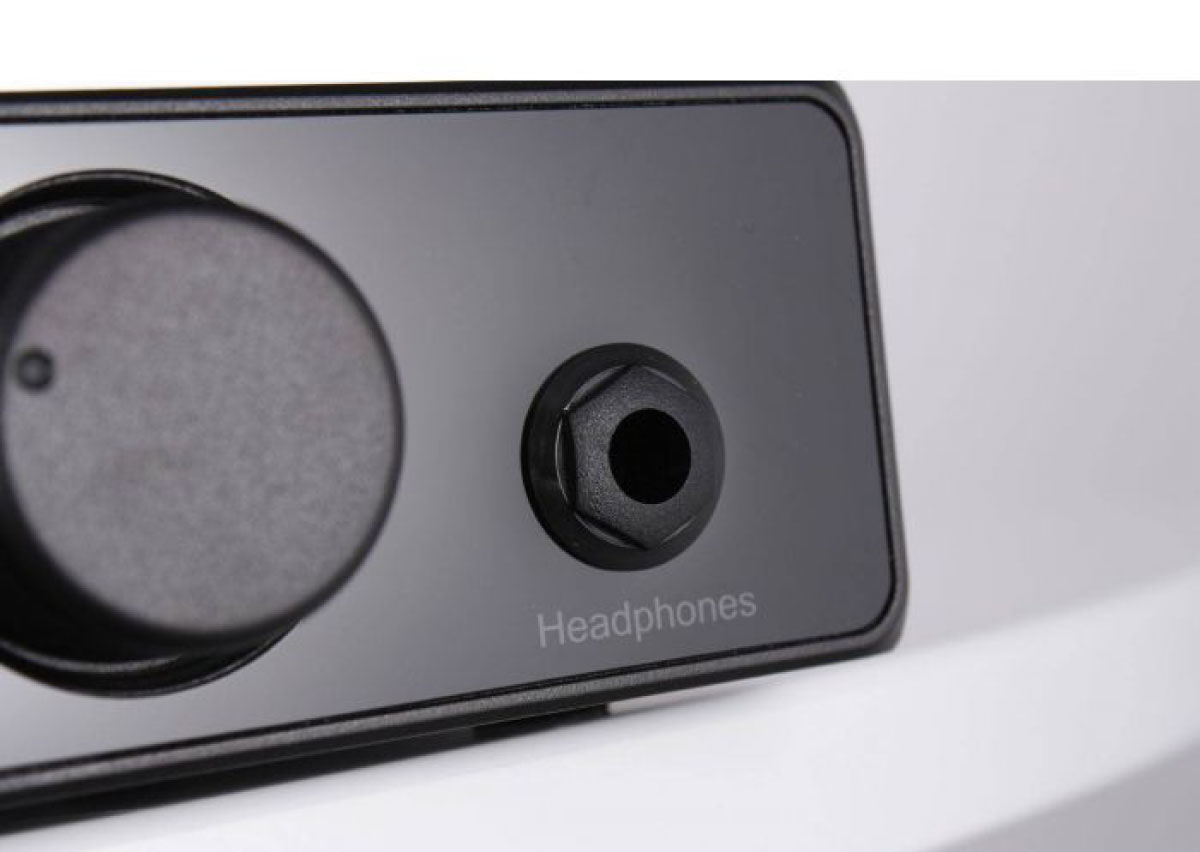

Housed in a compact custom case, the Ear is designed to match the current range of Rega electronics with a matching, high gloss, front facia.The new Ear Headphone amplifier benefits from an all new extruded aluminium case and new styling giving it more of a family feel to match its illustrious big brothers. The Ear simply connects to the tape output of an amplifier via phono leads. The headphones are plugged into the front panel and there is a link socket in case you need your tape output sockets for other use.

Hi Fi News reviews the Rega Ear headphone amplifier:

'The Rega Ear is lovely, in so many ways. It is beautifully made, stylish and has all the facilities you really need, plus a delightful sound that stirs the soul regardless of whatever music you put through it. Wonderfully expansive and big hearted, it makes listening a pleasure. Tonally it's slightly on the warm side, so suits poor quality sources down to the ground - even an iPad sounds good via the Rega!' - January 2014.

Maximum output level - 25 load 775mW, 32 load 685mW, 50 load 530mW, 100 load 320mW, 600 load 60mW

Open circuit voltage 6v

Input impedance 20K, Gain 28dB

Frequency response 12Hz to 37kHz

THD typically 0.003%

Signal to noise ratio referenced to max output level -100dB (22Hz – 22kHz)

Maximum Power requirements - 24VAC at 225mA (685mW 32)

Dimensions: W 178mm x D 155mm x H 45mm.
