The Sound of Invisibility

The ElectroMotion® Architectural Series features our award-winning compact Folded Motion® thin film transducer technology, bringing a new standard in acoustical performance to in-wall and in-ceiling applications. Designed for those seeking the world's most articulate and dynamic multi-channel home theater systems, or simply a stealthy 2-channel system, the Architectural Series speakers are voice and timbre matched with one another, as well as the rest of the MartinLogan line of ultra-premium electrostatic and Folded Motion speakers.

Folded Motion® Tweeters

Folded Motion Tweeters work by moving air (which creates sound) perpendicular to the folded ridges of the diaphragm, similar to how an accordion works. This extremely low mass diaphragm "squeezes" air and requires almost 90% less excursion than the typical 1" dome tweeter, which drastically minimizes distortion while providing a lightning fast response time. The increased surface area also provides a wide, yet controlled sound dispersion to create a realistic and carefully etched sound stage.

Installer Friendly

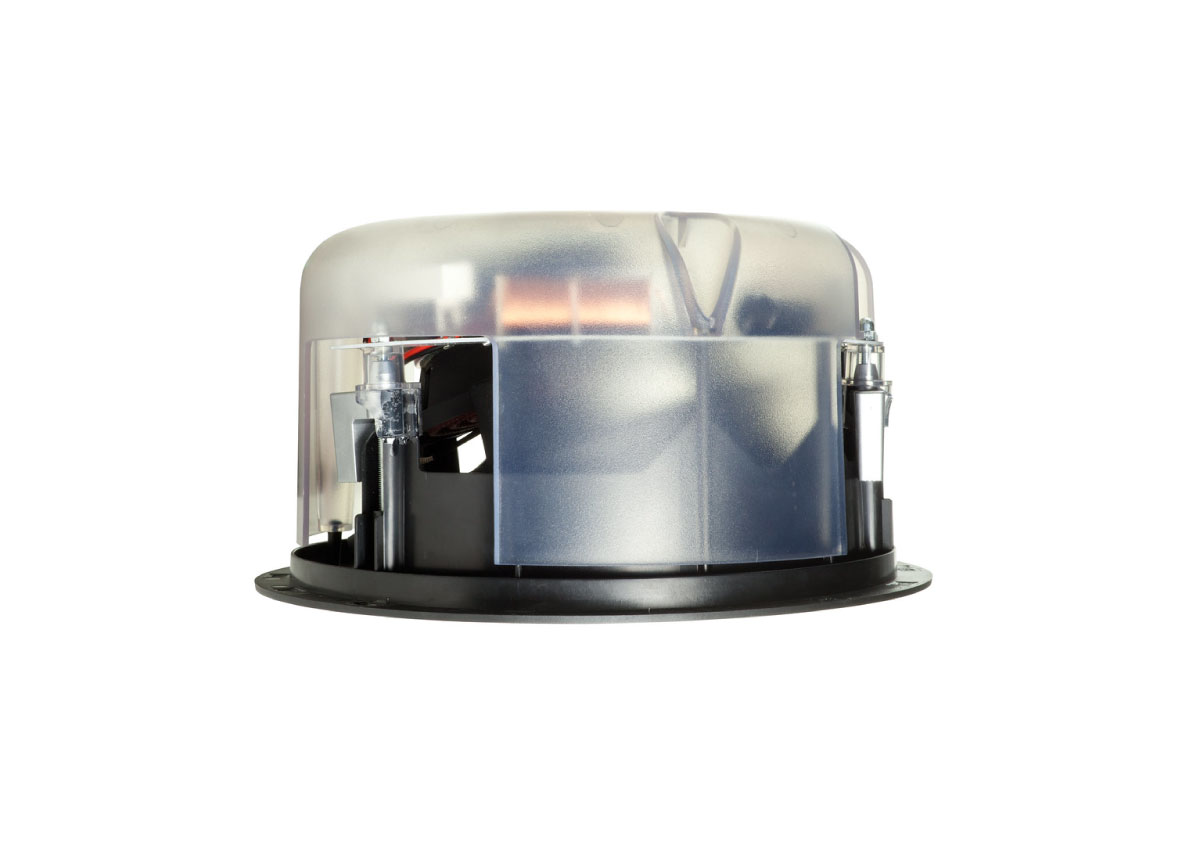

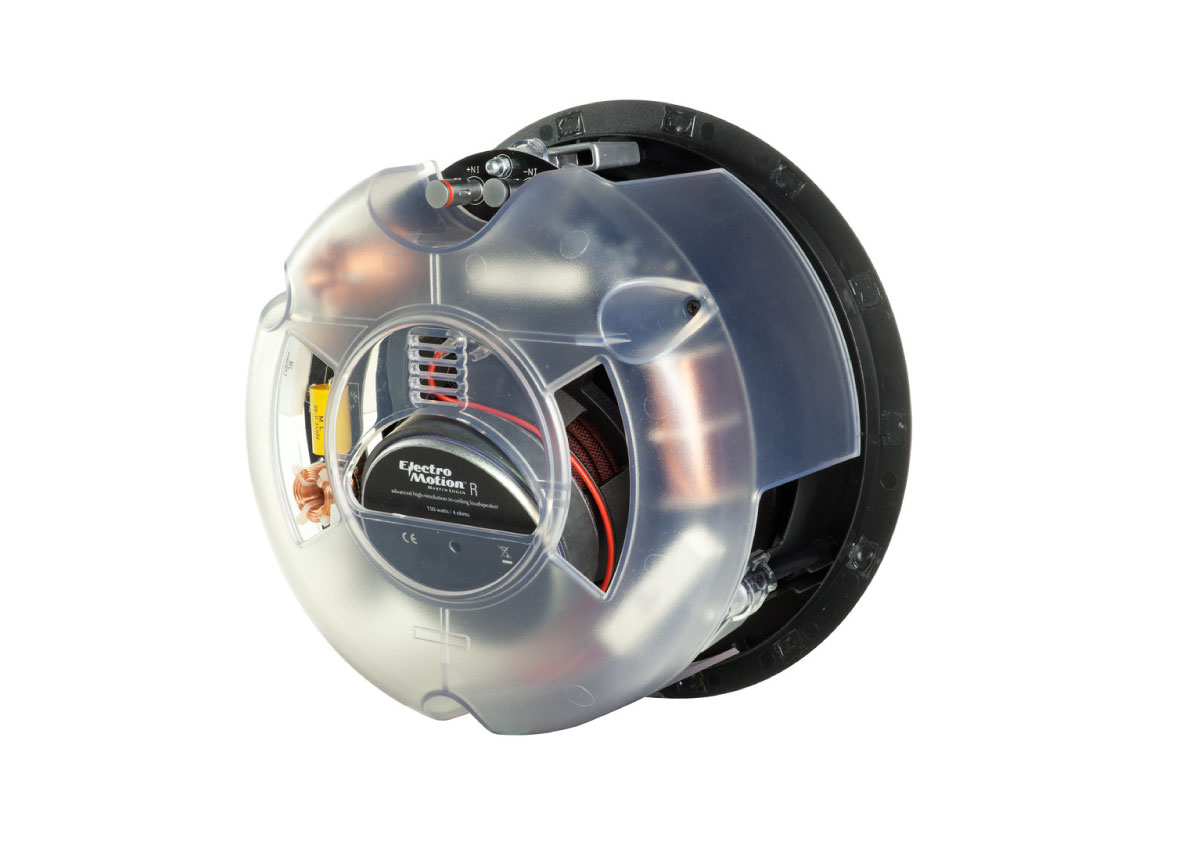

A robust mounting-lock system allows quick, trouble-free installation. When not in use, the constant-control mounting locks are held securely within a self-contained housing. When moved into place during installation, they couple the speaker's chassis firmly to the ceiling. And if the speaker is ever removed, the locks retract and latch themselves back in their housings.

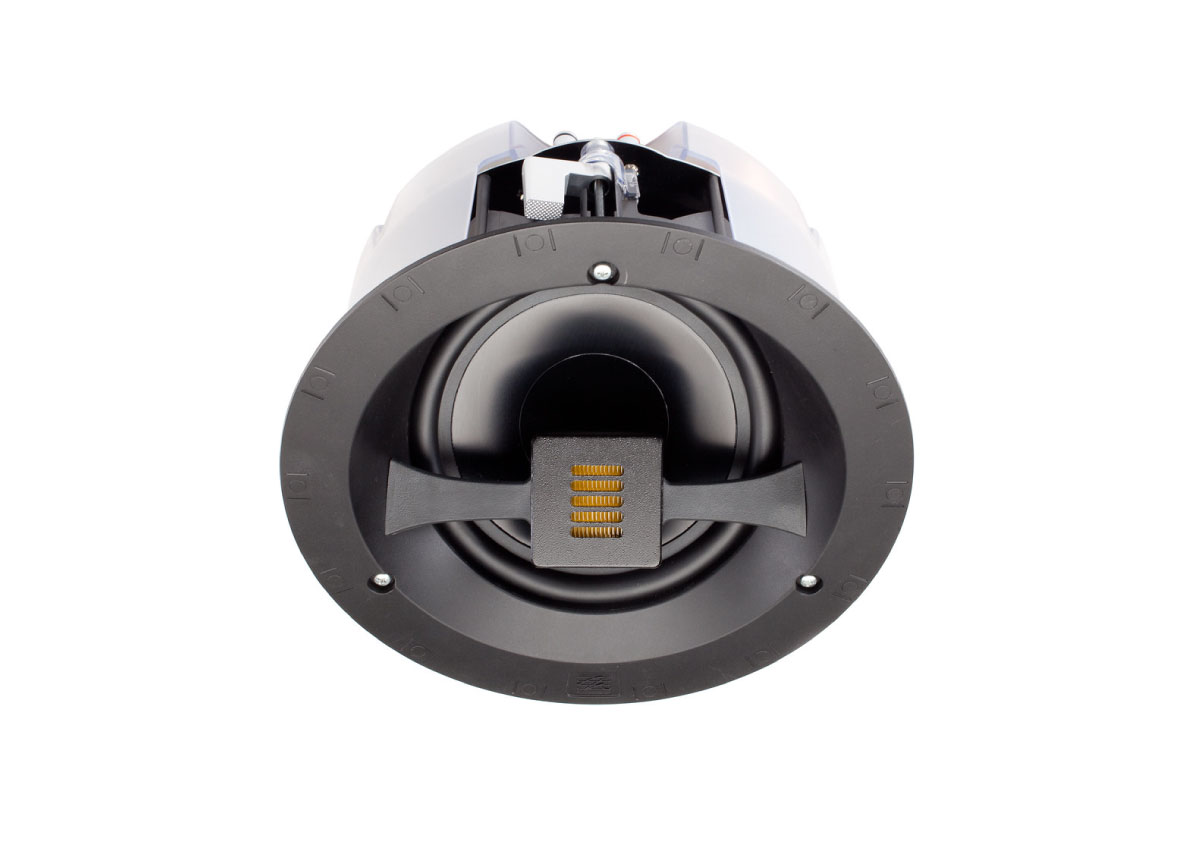

Installers rejoice as the Folded Motion tweeter is mounted at an angle, allowing the entire speaker to rotate to aim sound precisely where you want.

Stealthy Grilles

ElectroMotion architectural speakers feature ultra-low profile, paintable micro perforated grilles with no visible bezel for near invisible integration into any wall or ceiling. A magnetic system secures grilles easily into place, reducing the risk of warping or damage during installation.

Precision-Built, Advanced-Topology Vojtko™ Crossover

Carefully hand-built using only the finest polyester capacitors and air-core coils, the crossover employs MartinLogan's proprietary Vojtko topology for vanishingly low distortion and seamless driver integration. This precision-tuned network preserves even the most microscopic sonic nuances while handling the full dynamics of any source.

Multi Application Use

The EM-R is suitable for any application in small to large rooms. Ideal for use in a multi-channel home theater as a surround speaker, in a kitchen as 2-channel stereo speaker, or in a hallway as part of a distributed audio system.

Specifications

Specifications are subject to change without notice

Frequency Response 37–25kHz ±3dB

Recommended Amplifier Power 20—300 watts per channel

Horizontal Dispersion 80°

Vertical Dispersion 80°

Sensitivity 92 dB/2.83 volts/meter

Impedance 4 Ohms Compatible with 4, 6, or 8 Ohm rated amplifiers.

Crossover Frequency 2,600 Hz

High Frequency Transducer 1" x 1.4" (2.6cm x 3.6cm) Folded Motion Transducer with 5.25" x 1.75" (13.3cm x 4.4cm) diaphragm.

Low Frequency Transducer 8" (20.3cm) aluminum cone with cast aluminum basket. Concave dust cap.

Components Custom air core coil inductors. Polyester film capacitors in series and low DF electrolytic capacitors in parallel. Overall system thermal/cur- rent protection.

Inputs Push style binding posts with banana jack.

Weight 8 lbs. (3.63 kg)

Cut-Out Dimensions 10.5" dia.

(26.7 cm dia.)

Projection From Wall Surface .125" (.3cm)

Depth Behind Wall Surface 5.9" (15 cm)
