Affordable High-Performance Solutions

The Installer Series™ by MartinLogan is a line of affordable high-performance products, featuring custom installation solutions for in-wall, in-ceiling, and outdoor applications. Manufactured to the highest standards of quality, these products are available through authorized specialty custom installation specialists and carry the full MartinLogan warranty.

Specifications

Specifications are subject to change without notice

Frequency Response 75–20,000 Hz ±3dB

Recommended Amplifier Power 20—140 watts per channel

Sensitivity 89 dB/2.83 volts/meter

Impedance 8 Ohms. Compatible with 4, 6 or 8 ohm rated amplifiers. Compatible with 4, 6, or 8 Ohm rated amplifiers.

Crossover Frequency 2500 Hz

High Frequency Transducer 3/4" (2.5cm) titanium dome

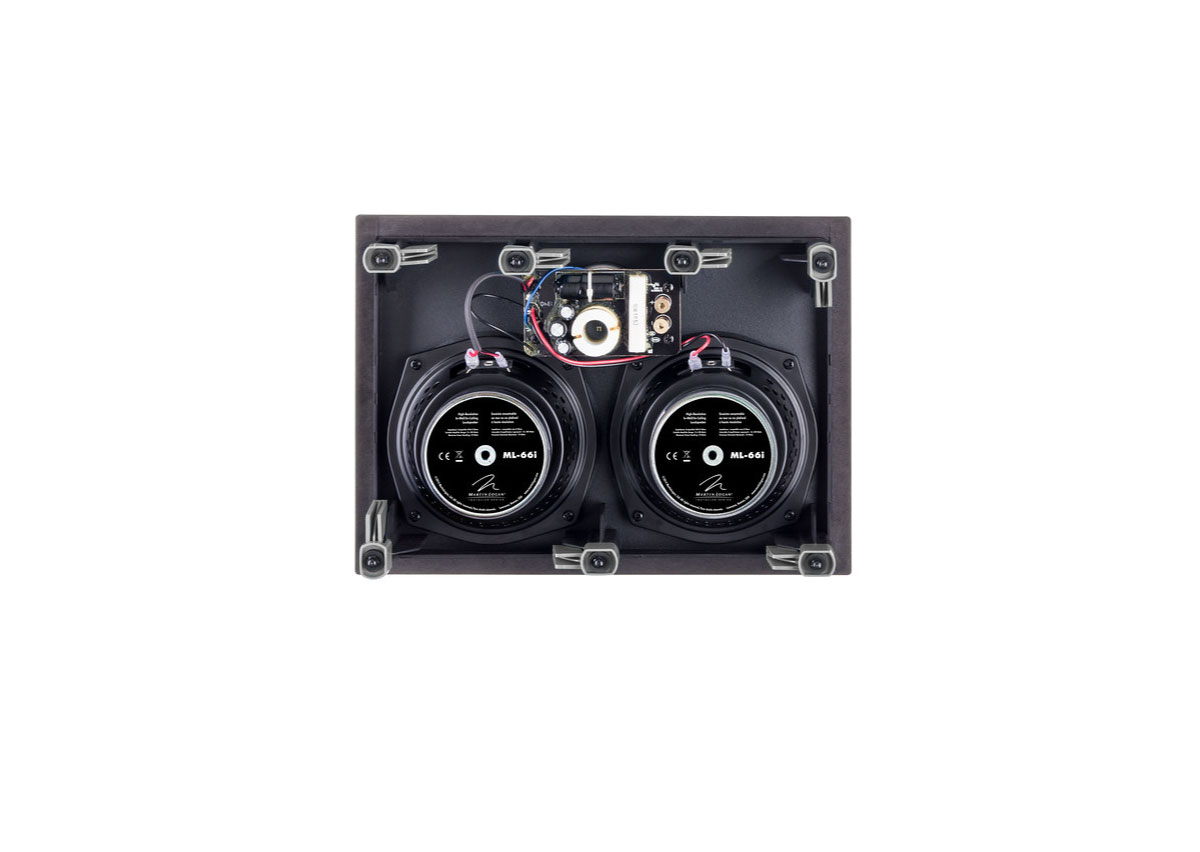

Low Frequency Transducer Two 5.5” (14cm) mineral-filled polypropylene cones

Inputs Spring clip accommodates wire up to 12AWG

Weight 5.9 lbs. (2.7 kg)

Dimensions (overall size) 9.3" x 12.7" x 3.4 "

(23.7cm x 32.3cm x 8.6cm)

Cut-Out Dimensions 11.625" x 8.25"

(29.5 cm x 20.9 cm)

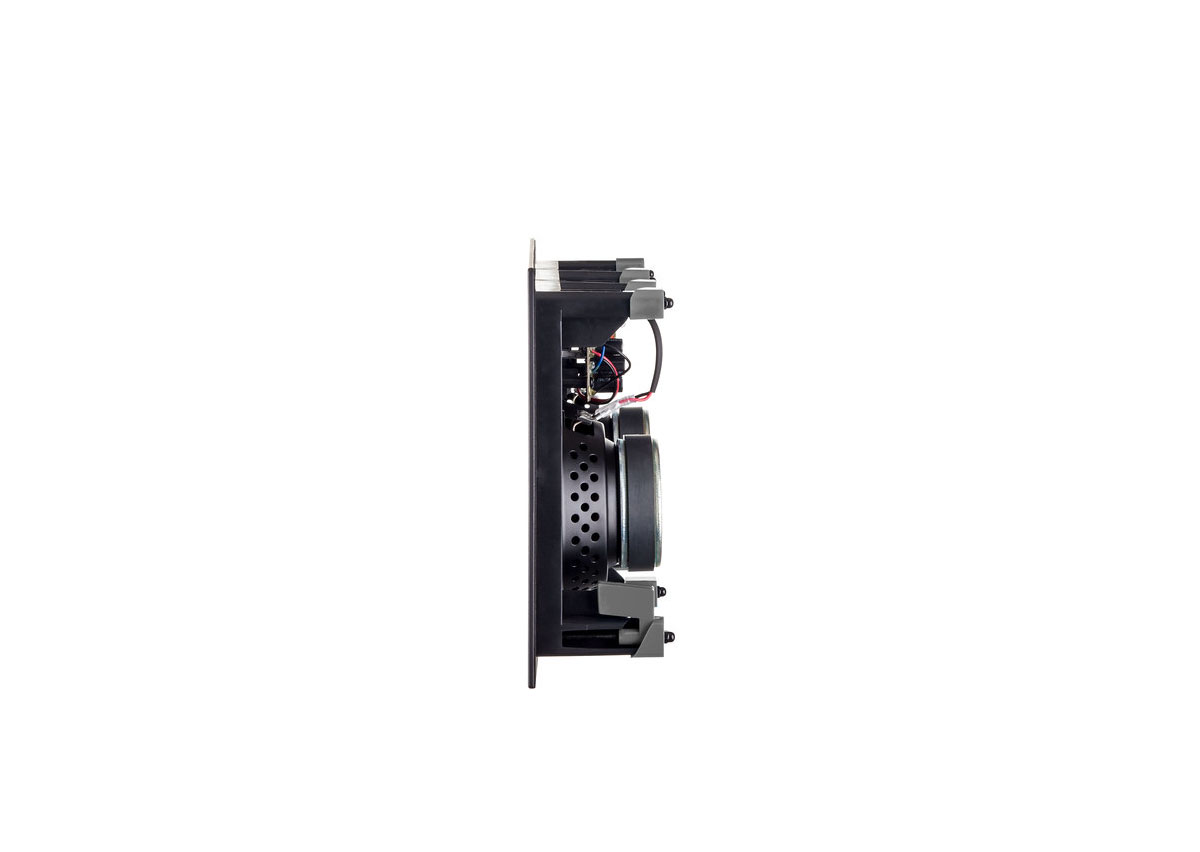

Projection From Wall Surface 0.2" (0.5cm)

Depth Behind Wall Surface 3.2" (8.1 cm)
