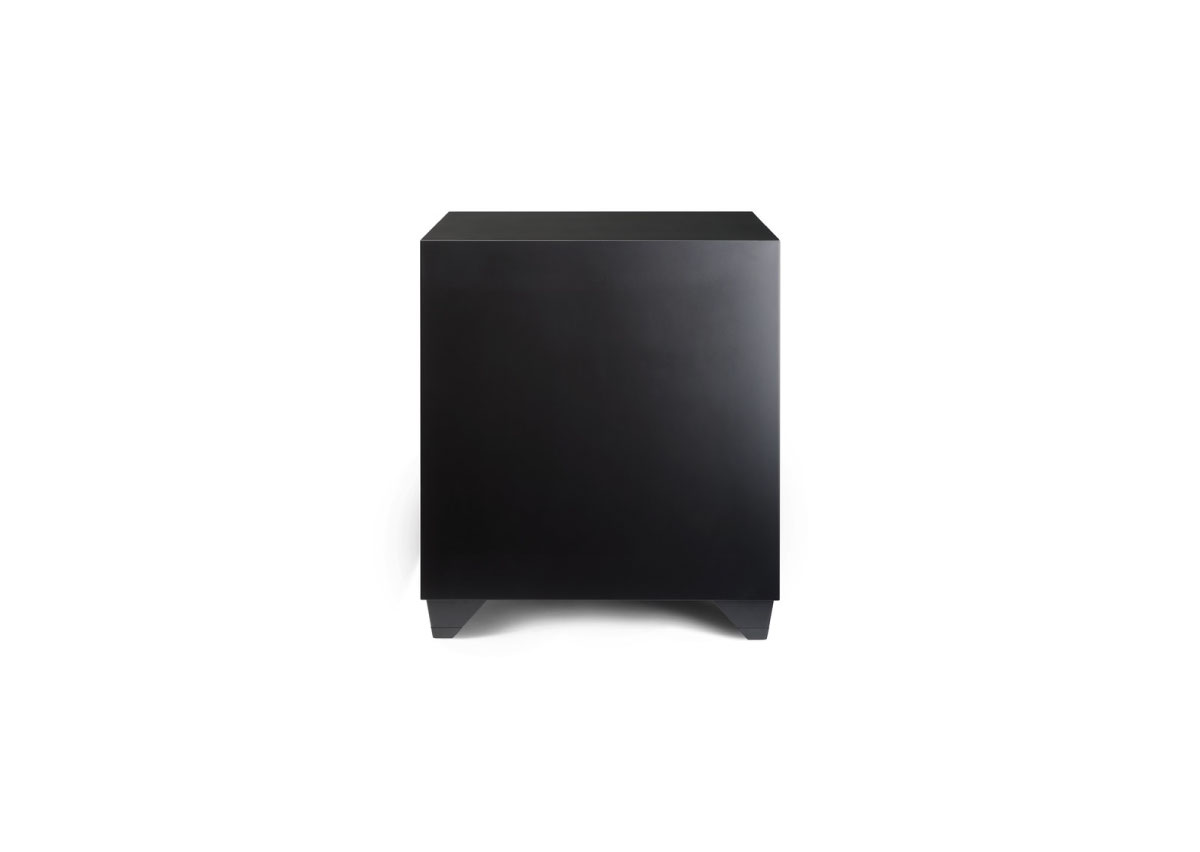

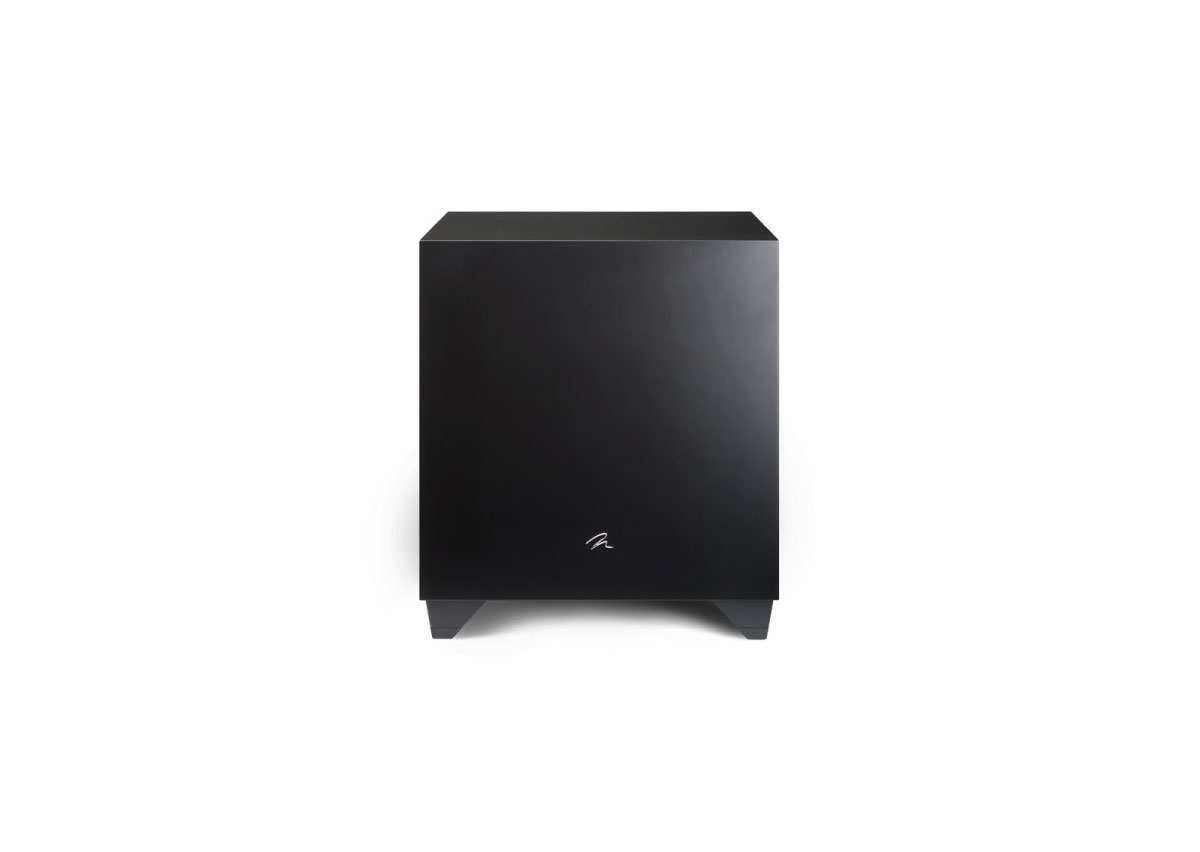

Dynamo 1600X

Product Highlights

• 15-inch inverted surround poly cone woofer
• 1,800 Watts (peak) amplifier
• Sealed non-resonant cabinet
• Digital control system via smartphone app
• Anthem Room Correction (ARC®) via smartphone app or PC
• Robust connection options, including XLR, RCA, and speaker level inputs; 12V Trigger
• Configurable front or down-firing design
• SWT-X Wireless Receiver & Transmitter (sold separately)

The Dynamo Family of High-Performance Subwoofer Systems

Dynamo 400

Dynamo 600X

Dynamo 800X

Dynamo 1100X

Dynamo 1600X

MARTINLOGAN SUB CONTROL APP

(AVAILABLE FOR iOS AND ANDROID)

MartinLogan’s Subwoofer Control app uses a Bluetooth connection to simplify setup and configuration of Dynamo 600X, 800X, 1100X, and 1600X. App based controls include volume level, low-pass filter (frequency and order), phase, 20–30Hz level, three preset listening modes, and control of Anthem Room Correction. A unique tone sweep feature assists users in locating areas in listening rooms where troublesome rattles or resonances may occur. A single press of a button allows listeners to initiate a tone sweep from 20–120Hz. If a rattle or resonance occurs in the room any frequency can be held, allowing the listener to investigate and identify the source of the unwanted noise.

Click here for more details

ARC MOBILE APP

(AVAILABLE FOR iOS AND ANDROID)

In the lab, MartinLogan engineers strive for transparency. Outside the lab, there’s one wildcard our engineers can never account for—the listening room. The unique size and shape of a listening space (and its contents) can make bass waves do unpredictable things, greatly affecting a subwoofer’s overall performance. Anthem Room Correction measures low-frequency sound output in a room and compares it to optimal response curves that account for spatial anomalies. The advanced algorithms of Anthem Room Correction effectively remove anomalies, leaving only the ideal standard— realistically blended, natural-sounding bass. Dynamo 600X, 800X, 1100X, and 1600X utilize a Bluetooth connection with a smartphone or USB connection with a PC to run Anthem Room Correction.

Click here for more details

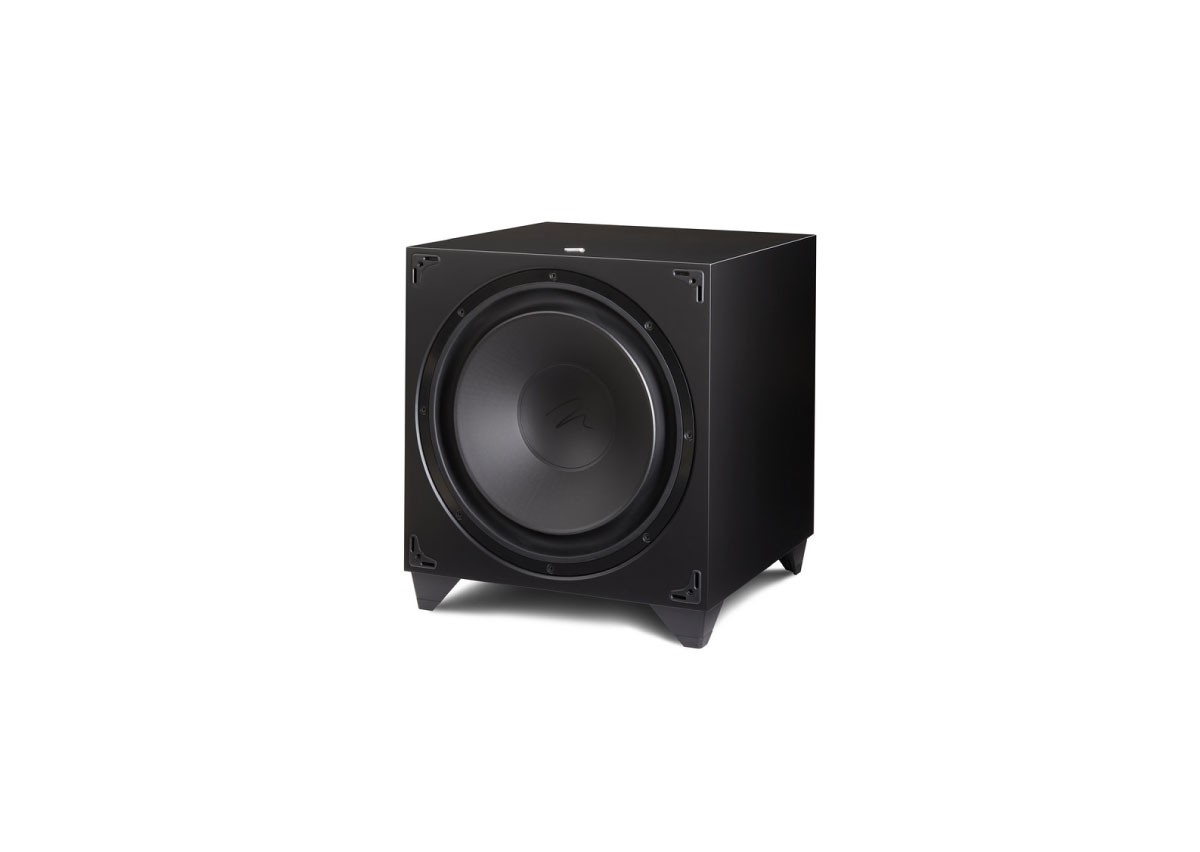

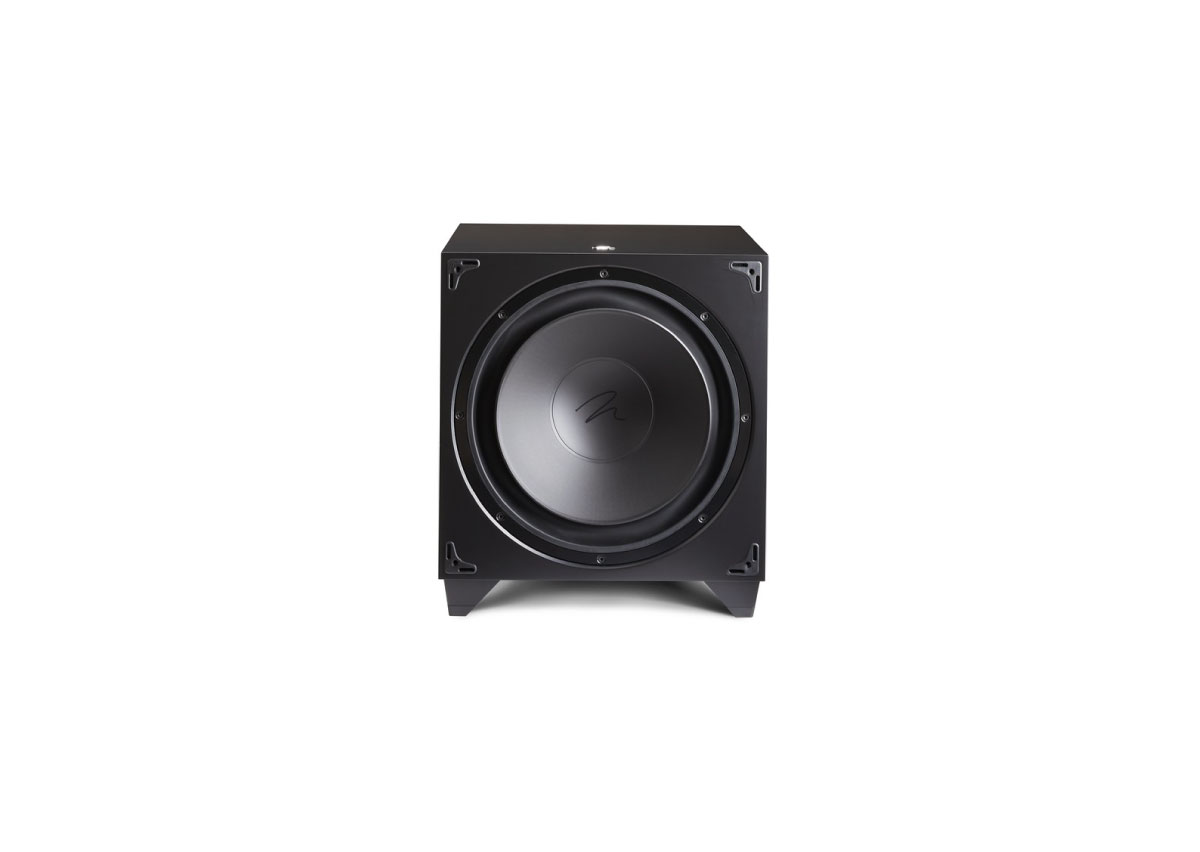

UNIQUE FRONT-FIRING OR DOWN-FIRING DESIGN

When placed in a cabinet or other discreet location, Dynamo 800X, 1100X, and 1600X subwoofers can easily convert from standard down-firing to front-firing orientation, with no tools or special skills required. A grille is provided for use in front-firing applications.

OPTIONAL SWT-X WIRELESS INPUT

Although correct placement plays a key role in optimizing subwoofer performance, sometimes it imposes the inconvenience of running long lengths of cable through walls, along baseboards or under floors and carpets. To solve the problem, Dynamo 600X, 800X, 1100X, and 1600X include a connection port for an optional wireless system. MartinLogan’s new SWT-X Wireless Subwoofer System (sold separately) incorporates the latest in wireless audio transmission technology, including 2.4GHz dynamic frequency selection, forward error correction, and a range up to 50 feet. Easy to install in the subwoofer, the SWT-X receiver requires no external power source or audio connections.

LEFT AND RIGHT 2-CHANNEL INPUTS

Dynamo 400, 600X, 800X, 1100X, and 1600X subwoofers feature left and right input via RCA line level as well as speaker level connections.

LFE HOME THEATER INPUT

Dynamo 400 and 600X’s right inputs double as an LFE input for home theater applications. Dynamo 800X ups the ante by adding a discrete LFE RCA line level input. Dynamo 1100X and 1600X go one step further by adding both XLR and RCA inputs for LFE connection.

12V TRIGGER INPUT

Dynamo 800X, 1100X, and 1600X feature 12V Trigger Inputs, allowing an external device to turn the subwoofer on and off.

SIMULTANEOUS LFE AND 2-CHANNEL CONNECTIONS

Dynamo 800X, 1100X, and 1600X subwoofers features left and right input via robust connection and a control system that allows simultaneous connection of both 2-channel stereo music and multi-channel home theater and allows each source to have individual crossover and level settings, giving listeners a perfect performance in every application. LFE inputs use no low-pass filter, leaving crossover control to the processor. Left and right inputs integrate discrete user-adjustable low-pass filters allowing different level and crossover points when playing back two channel music.

POWERFUL, HIGH-EXCURSION, LOW-TURBULENCE, INVERTED SURROUND WOOFERS

The latest generation of MartinLogan Dynamo subwoofers feature advanced-design woofers with inverted surrounds and powerful magnet, motor, and suspension designs. In front-fire mode the unique inverted surround design maximizes excursion clearance behind the grill cover. When positioned in a down-firing configuration, the inverted surround significantly reduces airflow related turbulence for an articulate and detailed low-frequency experience.

Dynamo woofers pair a high-power magnet structure (significantly more robust than previous generations) with low-mass diaphragms to provide massive excursions while perfectly preserving the tiniest bass detail. The exceptional damping properties of the cone ensure a smooth, non-resonant response necessary for truly seamless blending with high-performance loudspeakers.

Manufactured in MartinLogan’s Canadian factory, the advance-technology woofers found in Dynamo 1600X and 1100X represent the pinnacle of woofer engineering. To achieve an extremely linear response and minimize distortion, an inverted surround is overmolded onto each woofer cone to create a permanent bond while allowing extremely consistent weight distribution around all 360 degrees of the cone. Further, the stronger and more reliable bond created by overmolding technology not only maximizes power handling capabilities, but also reduces acoustically destructive edge return reflections that travel from the voice coil through the cone and to the edge of the surround. To further maximize linearity, a robust voice coil is hand wound to a tolerance of one-quarter turn to deliver consistent impedance.

Every element of Dynamo subwoofers has been meticulously designed to deliver a staggering low-frequency performance, in a compact footprint, and packed with the latest technologies – all without a hint of distortion.

ADVANCED ULTRA-EFFICIENT SWITCH MODE POWER SUPPLIES AND CLASS-D AMPLIFIERS

Dynamo subwoofer class-D amplifiers operate with extremely low levels of distortion and deliver dynamic impact with plenty of overhead. Low- noise, high-power switching power supplies produce clean power efficiently in a small space and effortlessly provide tremendous levels of current. Both feature high-quality MOSFET transistors, transformers, noise-suppression networks, and control circuitry. The switching power supply combined with reliable class-D technology means there’s virtually no energy lost in the subwoofer system.

INVERSE MATHEMATICAL EQUALIZATION (IME) FILTER

The IME filter used in the Dynamo subwoofers is derived from the inverse of the unfiltered driver response. Precision IME filtering yields extremely accurate low-frequency response—superior to that provided by the simple second-order high-Q filters typically found in subwoofers in this price range.

SEALED CABINET WITH EXTENSIVE INTERNAL BRACING

Although ports, when correctly designed, are a convenient and cost-effective way of increasing low-frequency output, when used in small cabinets their reliance on resonant energy can impair bass quality. Dynamo 800X, 1100X, and 1600X are compact, sealed subwoofer systems that minimize transient-blurring group delay while maintaining smooth, consistent response, regardless of music or movie source material. The cabinets are constructed from the finest composite material for acoustic integrity. Inside, critically placed structural cross-bracing provides a stable foundation for the woofer, while the added rigidity keeps cabinet-induced resonances and non-linearities to inaudible levels.

BUILT-IN ETC™ (ENERGY TRANSFER COUPLER) SPIKES

Dynamo 800X, 1100X, and 1600X come with custom ETC spikes which can be used to enhance stability on thick carpets, or create tighter coupling between subwoofer and floor to enhance overall sound quality. The built-in spikes are conveniently and discretely hidden underneath the rubber feet.

Specifications

Specifications are subject to change without notice

Frequency Response 20–200 Hz ±3 dB. Anechoic in LFE mode.

Impedance RCA: 8,300 Ohms

Speaker Level: 2,000 Ohms (red to black)

XLR: 28,000 Ohms (pin 2 to 3)

Low Frequency Transducer 15” (38.1cm) high-excursion, inverted surround, polypropylene cone in a cast aluminum basket with extended throw driver assembly; sealed non- resonant cabinet design.

Amplifier 900 Watts (1,800 peak)

Software Sub Control App: iOS and Android

Anthem Room Correction: iOS, Android, and PC

Room Correction Anthem Room Correction (ARC)

Controls (Backplate) Level: Min–Max

Setting Control: Local, App

Power Mode: On, Trigger, Auto

Controls (via Bluetooth) Level: -40 to 12dB

Low-Pass Filter (Frequency): 35–120Hz

Low-Pass Filter (Order): Bypass, Third, Fourth

Phase: 0–180° (1° Increments)

Phase (Polarity): Normal, Inverted

Preset Listening Modes: Music, Night, Movie

20–30Hz Level: ±10dB

Anthem Room Correction (ARC): On, Off

Tone Sweep (20–120Hz): On, Off, Pause (Frequency)

Inputs (Audio) Line Level: Left, Right, and LFE

Speaker Level: Left and Right via banana jacks

XLR: LFE

Inputs (Audio, Wireless) SWT-X Receiver & Transmitter (sold separately)

Inputs (Other) USB: Micro USB (for ARC/Firmware Update)

Trigger: 3.5mm, 5–24 DC

Power Draw Typical: 125W, Max: 800W, Idle: 15W, Standby: 0.5W

Feet Rubber, ETC (Energy Transfer Coupler) Spikes

Weight 57 lbs. (25.9 kg)

Dimensions (HxWxD), Front-Firing 20.1" x 17.9" x 19.1"

(51 cm x 45.4cm x 48.6cm)

Dimensions (HxWxD), Down-Firing 20" x 17.9 " x 18.5 "

(50.9 cm x 45.4cm x 47 cm)

Finish Satin Black
