Dynamo 1100X

Product Highlights

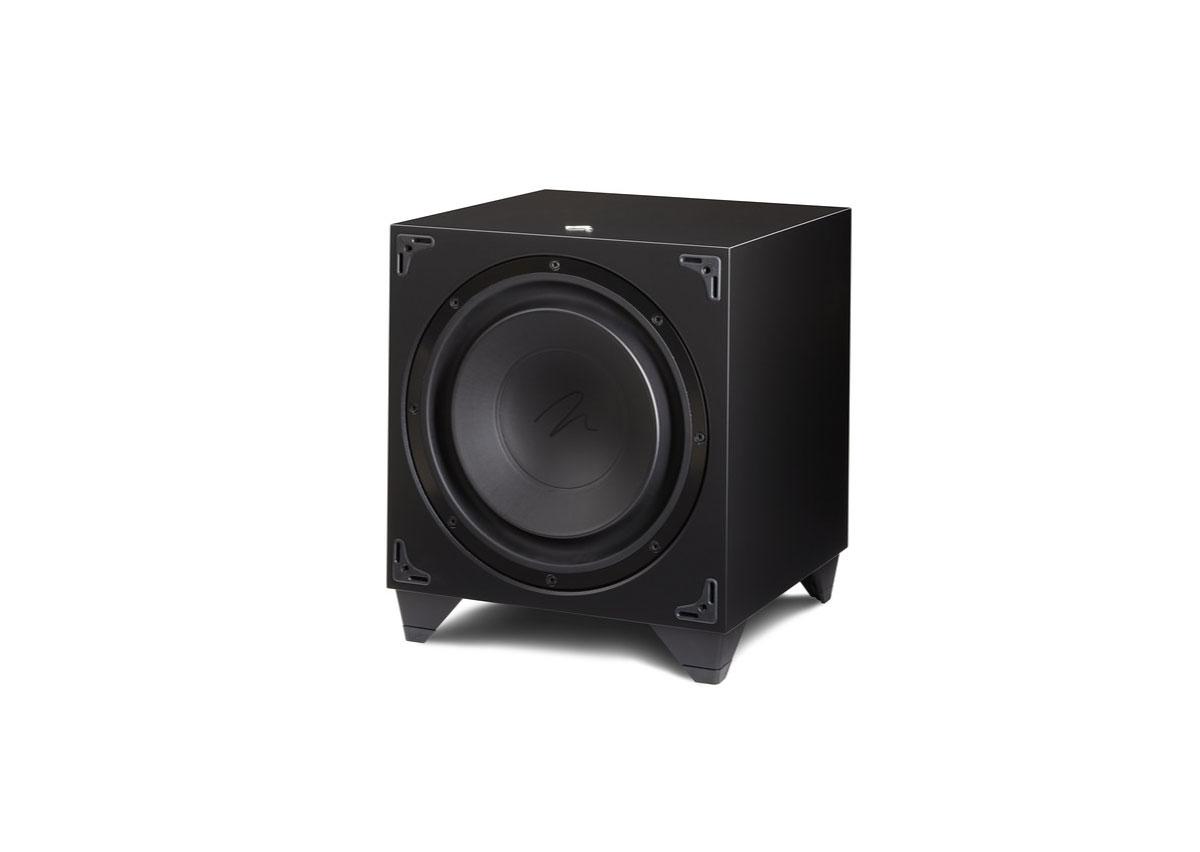

• 12-inch inverted surround poly cone woofer
• 1,300 Watts (peak) amplifier
• Sealed non-resonant cabinet
• Digital control system via smartphone app
• Anthem Room Correction (ARC®) via smartphone app or PC
• Robust connection options, including XLR, RCA, and speaker level inputs; 12V Trigger

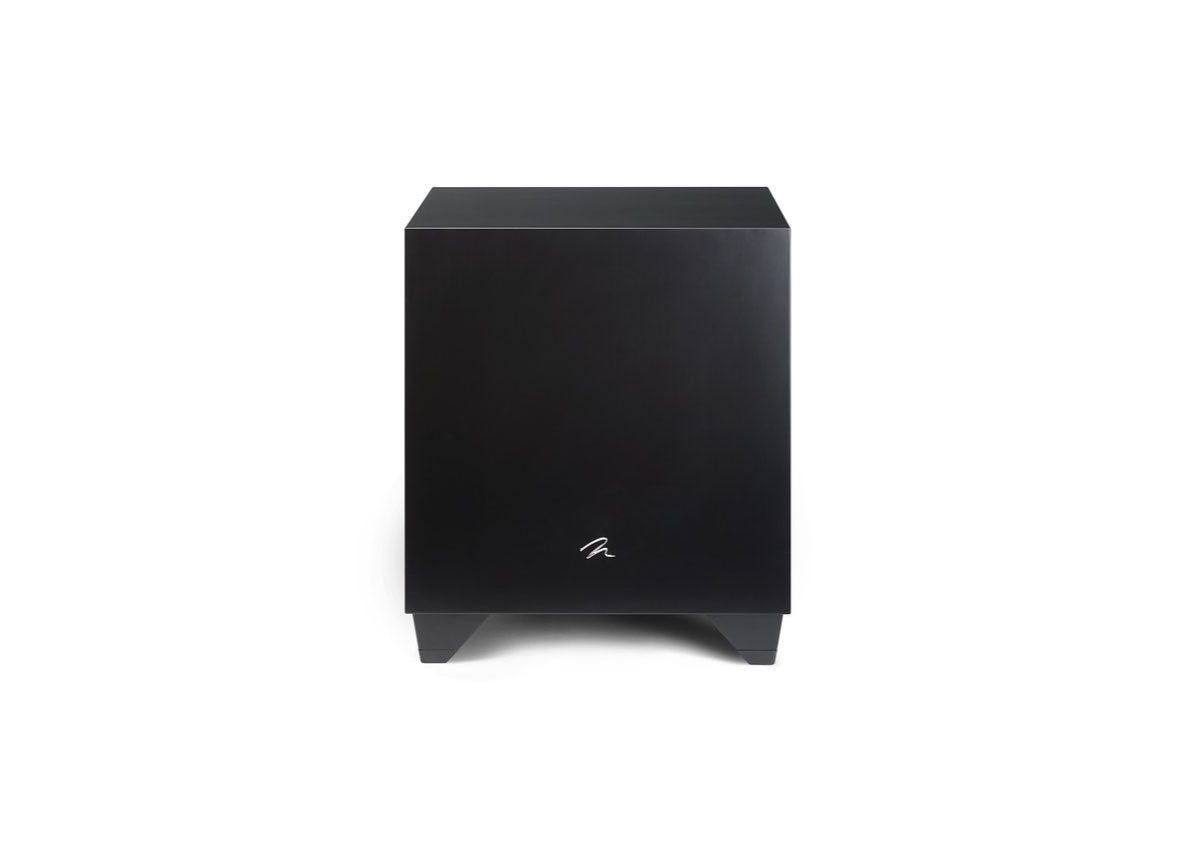

• Configurable front or down-firing design
• SWT-X Wireless Receiver & Transmitter (sold separately)

Specifications

Specifications are subject to change without notice

Frequency Response 22–200 Hz ±3 dB. Anechoic in LFE mode.

Impedance RCA: 8,300 Ohms

Speaker Level: 2,000 Ohms (red to black)

XLR: 28,000 Ohms (pin 2 to 3)

Low Frequency Transducer 12” (30.5cm) high-excursion, inverted surround, polypropylene cone in a cast aluminum basket with extended throw driver assembly; sealed non- resonant cabinet design.

Amplifier 650 Watts (1,300 peak)

Software Sub Control App: iOS and Android

Anthem Room Correction: iOS, Android, and PC

Room Correction Anthem Room Correction (ARC)

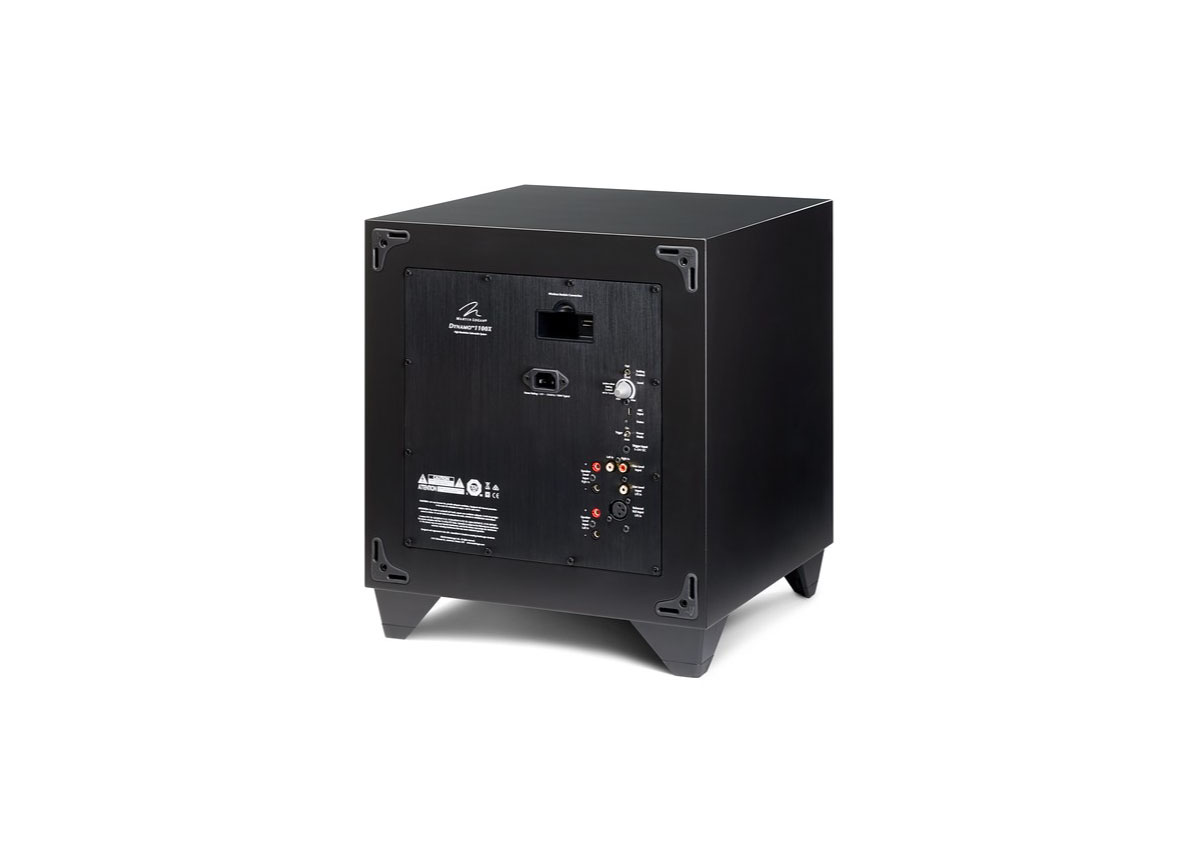

Controls (Backplate) Level: Min–Max

Setting Control: Local, App

Power Mode: On, Trigger, Auto

Controls (via Bluetooth) Level: -40 to 12dB

Low-Pass Filter (Frequency): 35–120Hz

Low-Pass Filter (Order): Bypass, Third, Fourth

Phase: 0–180° (1° Increments)

Phase (Polarity): Normal, Inverted

Preset Listening Modes: Music, Night, Movie

20–30Hz Level: ±10dB

Anthem Room Correction (ARC): On, Off

Tone Sweep (20–120Hz): On, Off, Pause (Frequency)

Inputs (Audio) Line Level: Left, Right, and LFE

Speaker Level: Left and Right via banana jacks XLR: LFE

Inputs (Audio, Wireless) SWT-X Receiver & Transmitter (sold separately)

Inputs (Other) USB: Micro USB (for ARC/Firmware Update)

Trigger: 3.5mm, 5–24 DC

Power Draw Typical: 100W, Max: 600W, Idle: 15W, Standby: 0.5W

Feet Rubber, ETC (Energy Transfer Coupler) Spikes

Weight 46 lbs. (20.9 kg)

Dimensions (HxWxD), Front-Firing 17.2" x 15" x 16.2"

(43.6 cm x 38cm x 41.1cm)

Dimensions (HxWxD), Down-Firing 17.1" x 15 " x 15.6 "

(43.5 cm x 38cm x 39.6 cm)

Finish Satin Black
