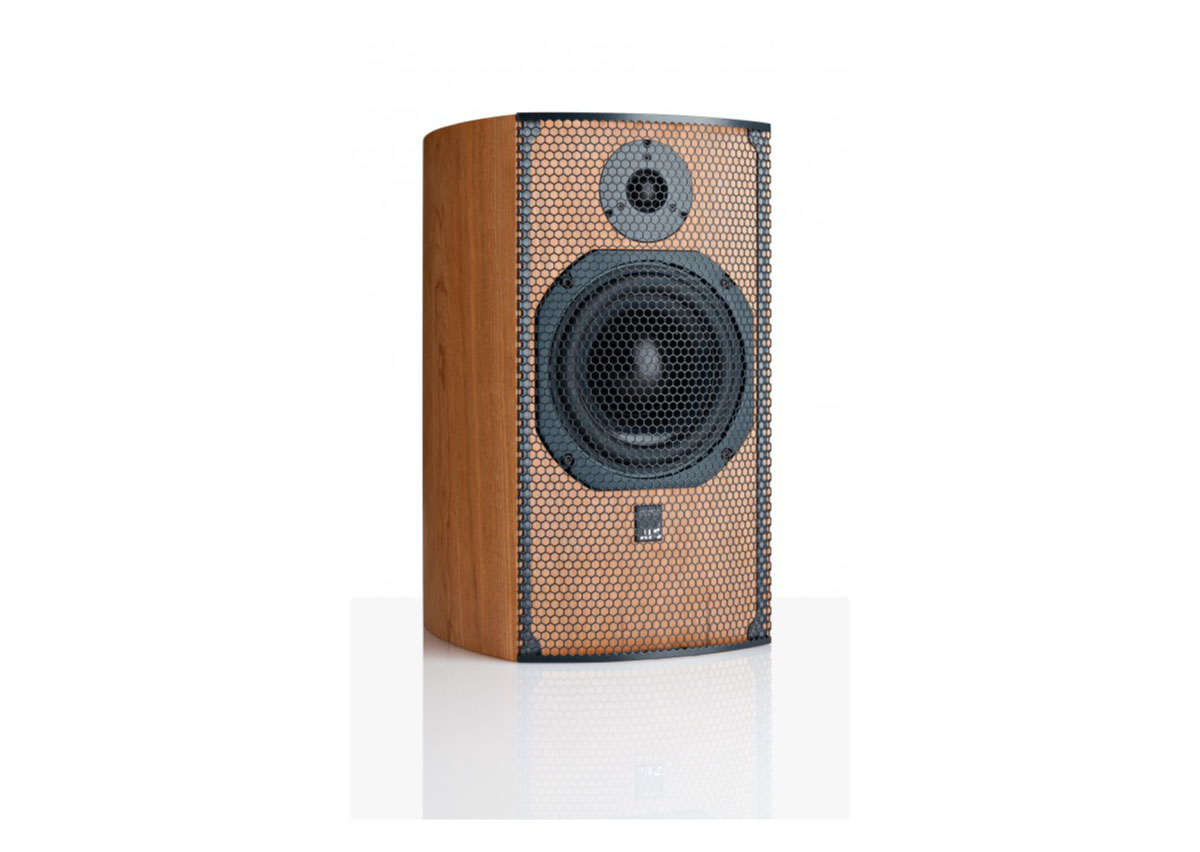

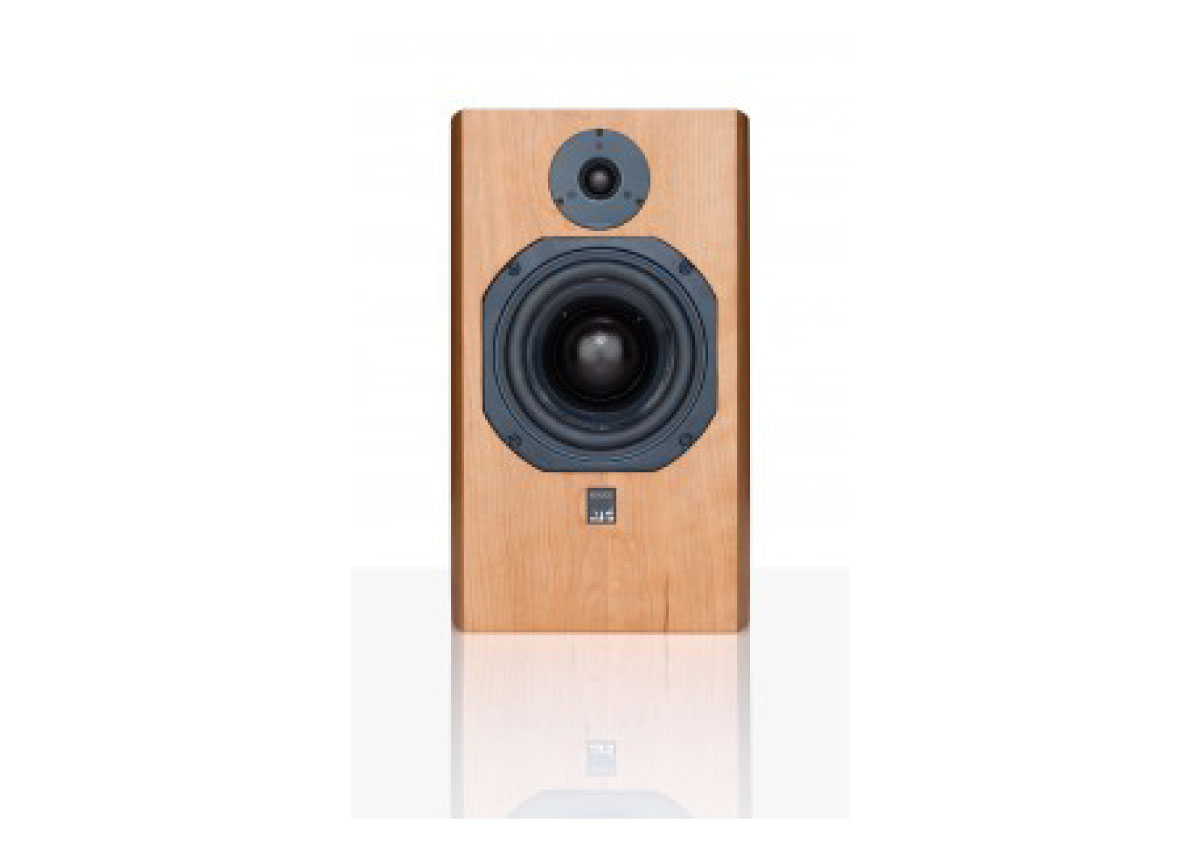

Category Bookshelf Speakers ATC SCM19 /CHERRY
ATC
SCM19 /CHERRY

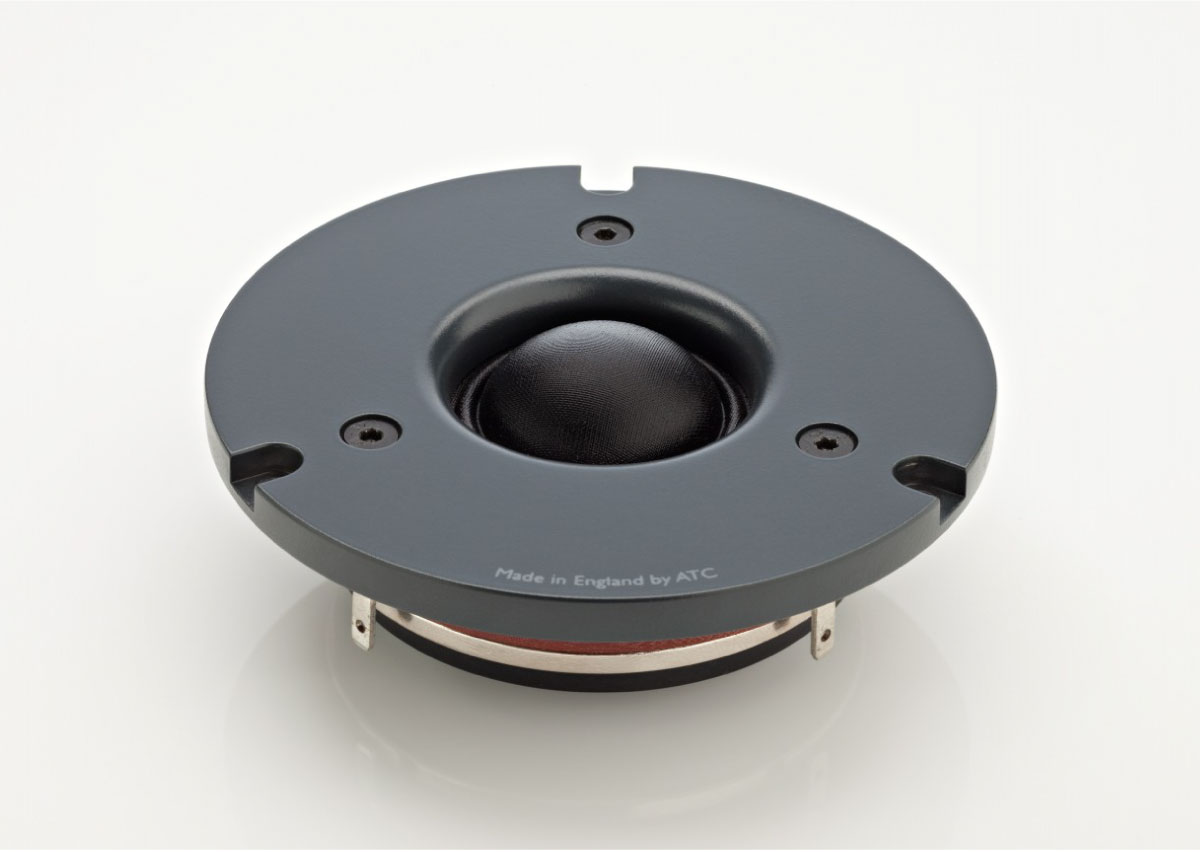

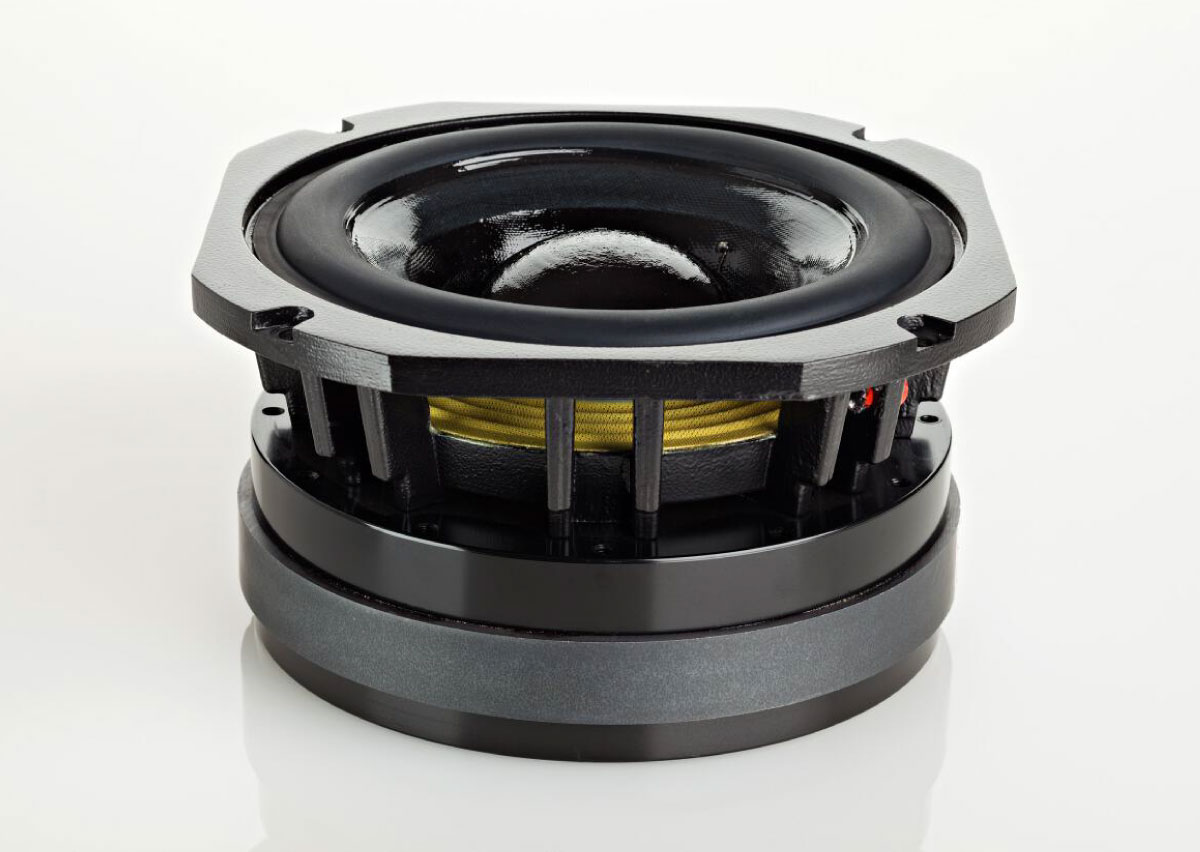

New ATC designed and built 25mm soft dome HF unit with precision alloy wave guide. “SL” spec bass driver with 75mm integral soft dome. 9kg optimised short-coil/long gap motor assembly. In-house, hand-wound precision flat wire coil. Flat impedance curve allowing easy load for amplifiers. 6 year warranty.

ราคาปกติ :
฿110,000
ราคาพิเศษ :
฿99,000

Specifications


Drivers: HF ATC 25mm Neodymium soft dome, Mid/LF ATC 150mm SL

Matched Response: ±0.5dB

Frequency Response (-6dB): 54Hz-22kHz

Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical

Sensitivity: 85dB @ 1W @ 1metre

Max SPL: 108dB

Recommended Power Amplifier: 75 to 300 Watts

Nominal Impedance: 8 Ohm

Crossover Frequency: 2.5kHz

Connectors: Binding Posts/4mm Plugs, bi-wire

Cabinet Dimensions (HxWxD): 438x265x300mm (grill adds 34mm to depth)

Weight: 17.8kg
