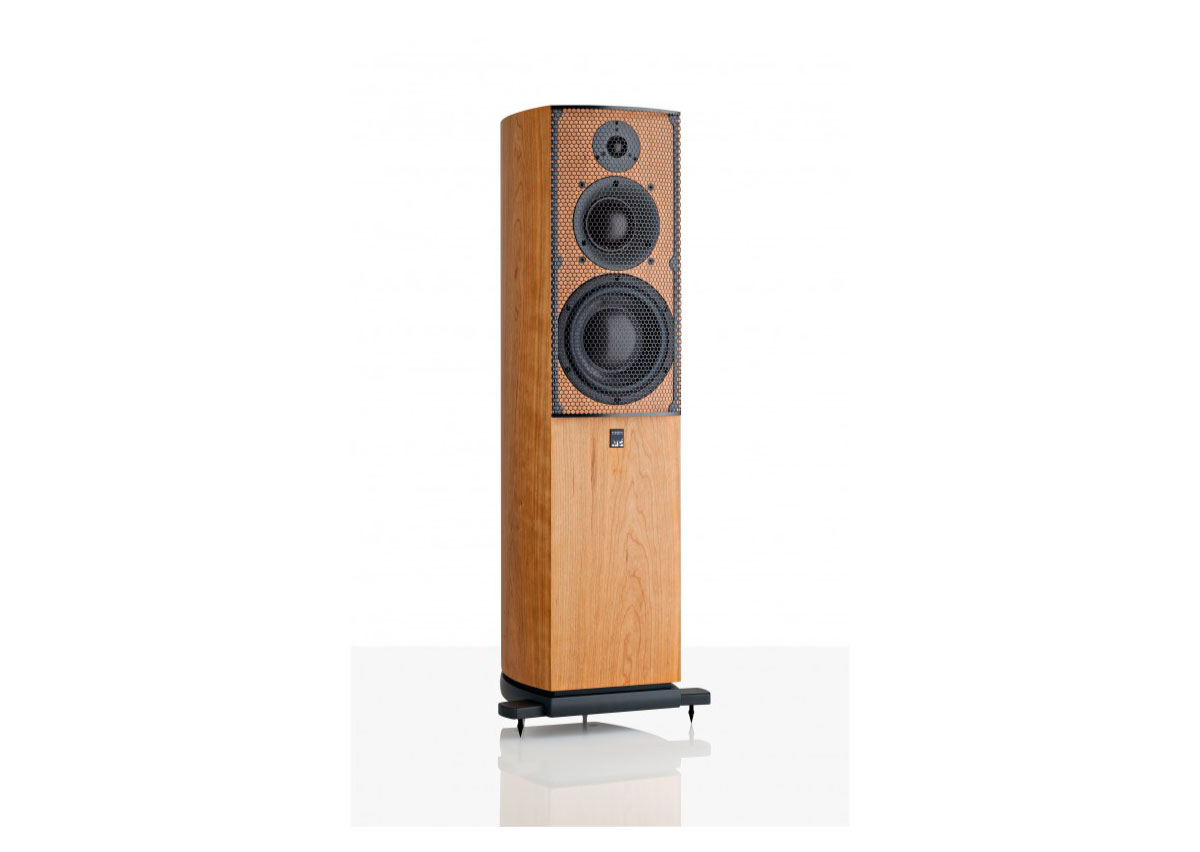

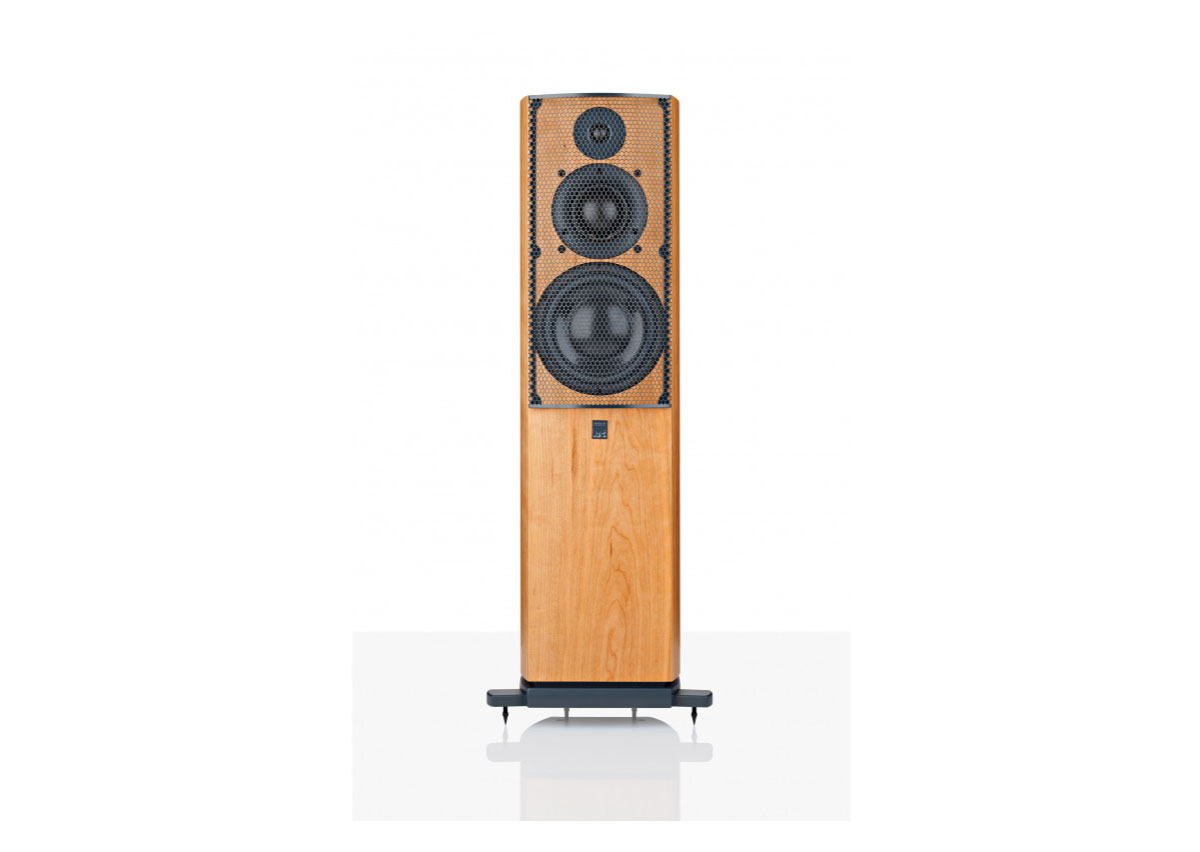

Category Floor Standing Speakers ATC SCM40 / CHERRY
ATC
SCM40 / CHERRY

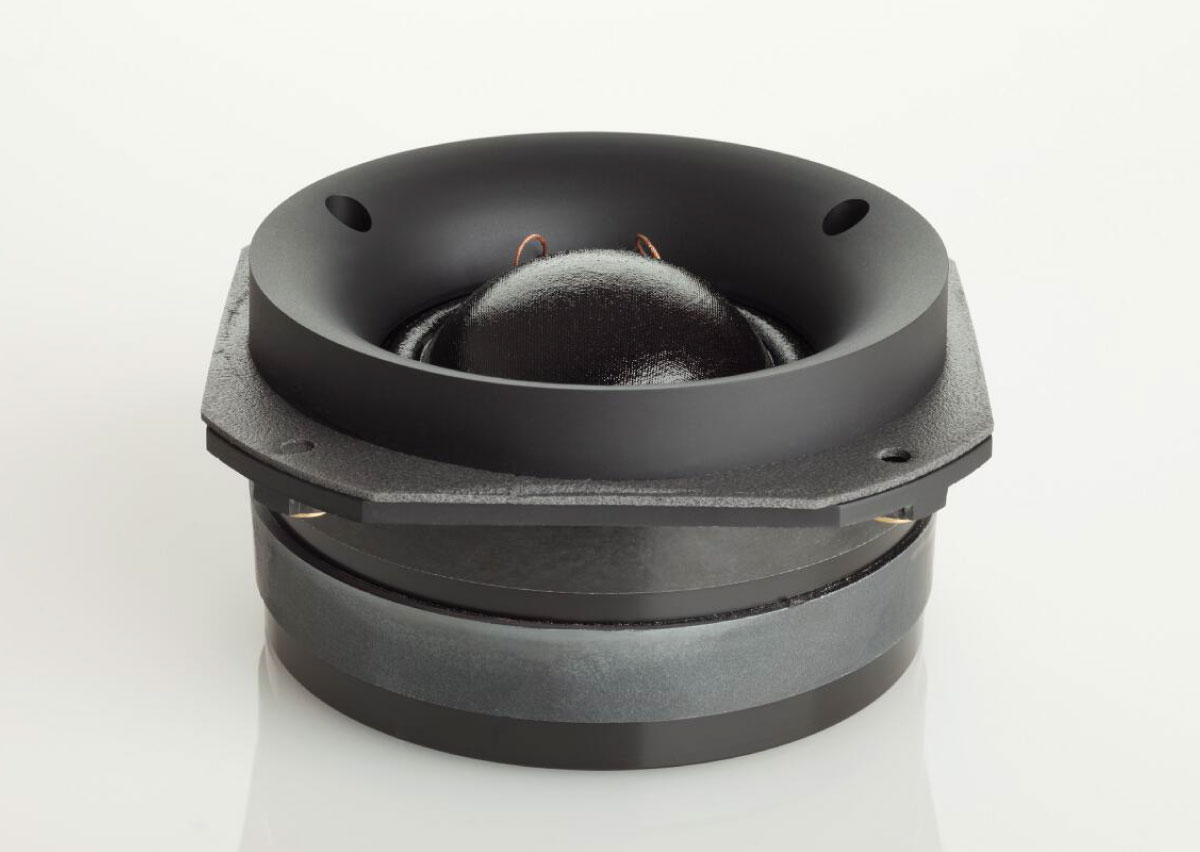

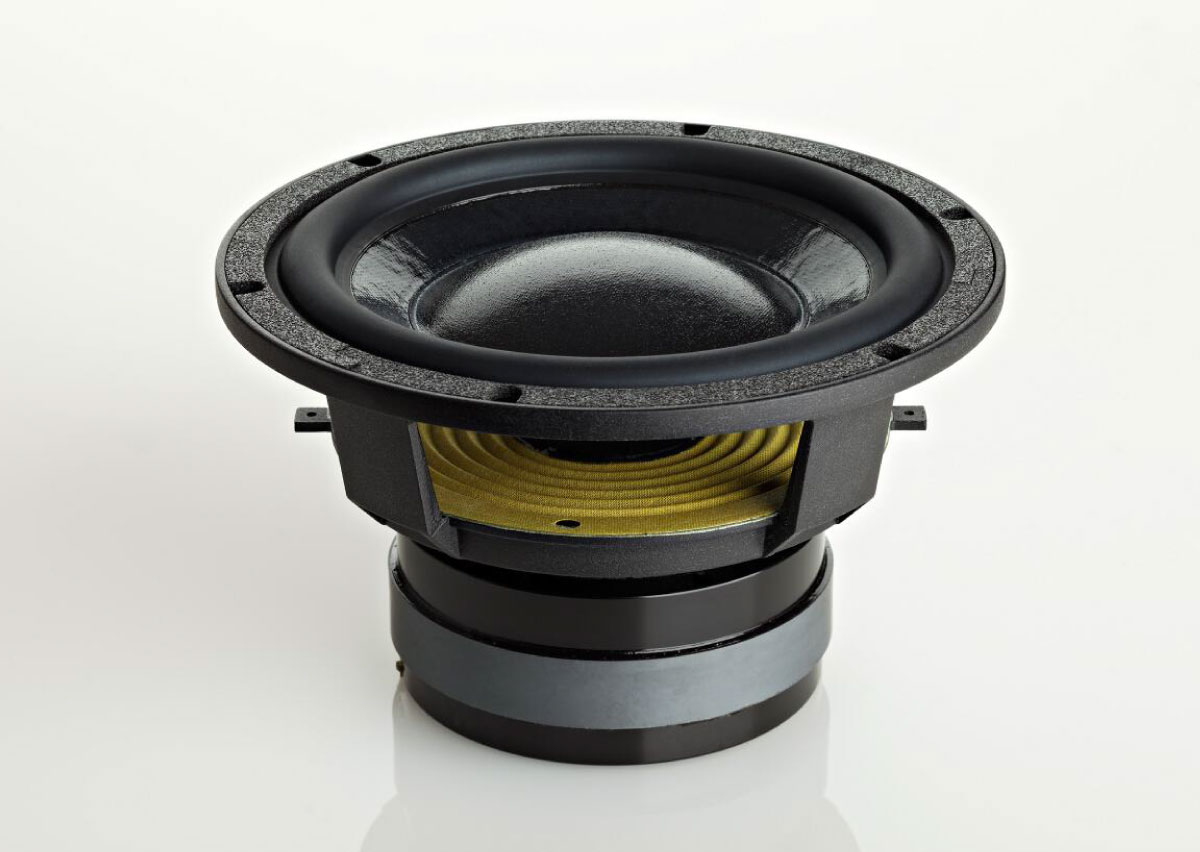

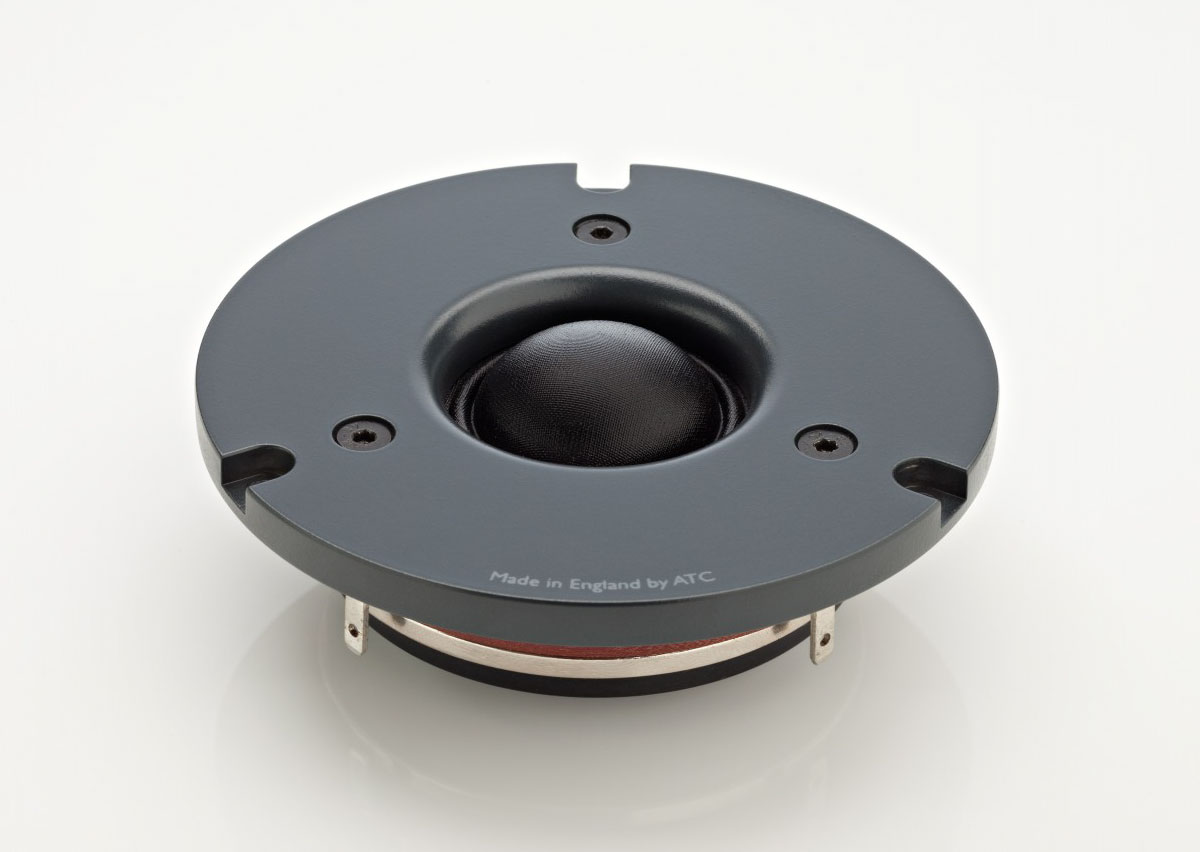

New ATC designed and built 25mm soft dome HF unit with precision alloy wave guide. ATC 164mm bass driver. Massive optimised motor assembly. ATC Soft Dome mid-range driver. Flat impedance curve allowing easy load for amplifiers. 6 year warranty.

ราคาปกติ :
฿190,000
ราคาพิเศษ :
฿171,000

Specifications


Drivers: HF ATC 25mm Neodymium, Mid 75mm ATC Soft Dome, LF ATC 164mm SC

Matched Response: ±0.5dB

Frequency Response (-6dB): 48Hz-22kHz

Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical

Sensitivity: 85dB @ 1W @ 1metre

Max SPL: 112dB

Recommended Power Amplifier: 75 to 300 Watts

Nominal Impedance: 8 Ohm

Crossover Frequencies: 380Hz & 3.5kHz

Connectors: Binding Posts/4mm Plugs, tri-wire

Dimensions (HxWxD): 980 x 370 x 305mm (inc. foot plinth, spikes add 25mm to height, grill adds 34mm to depth)

Weight: 31kg
