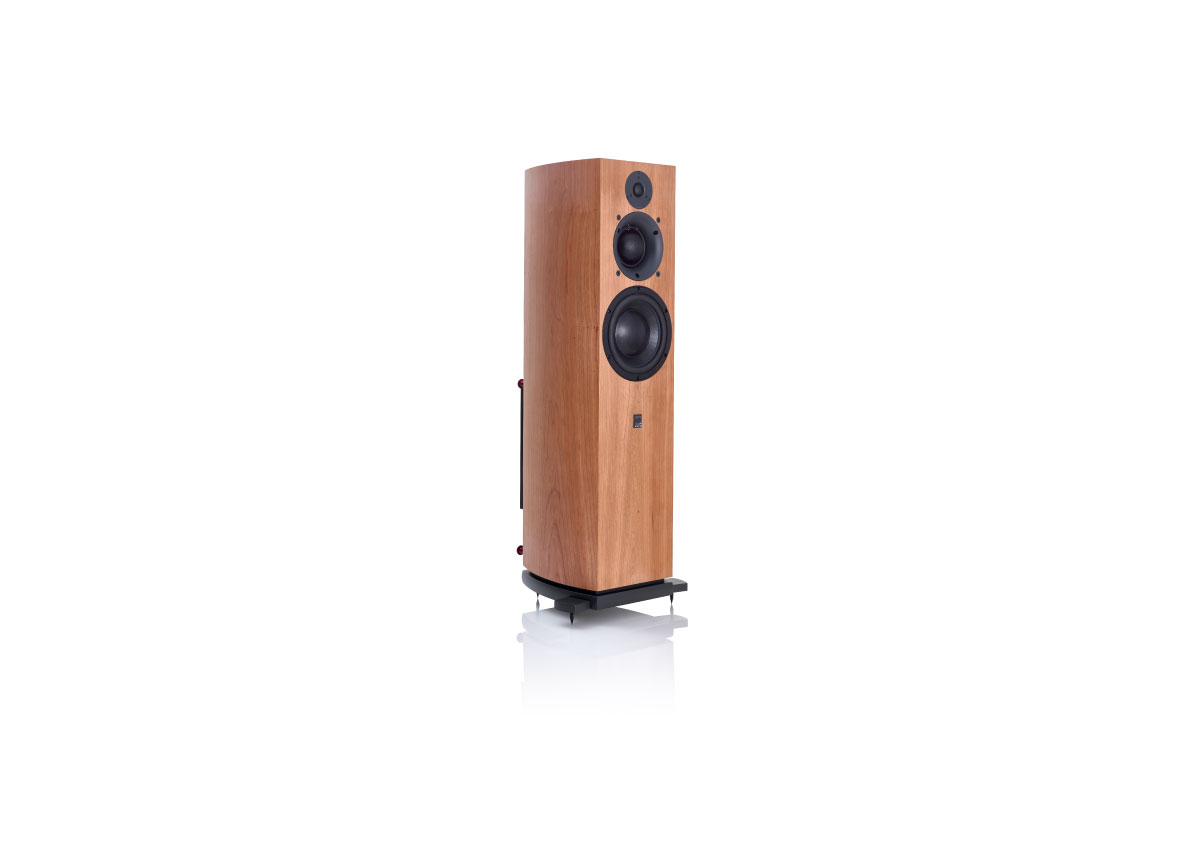

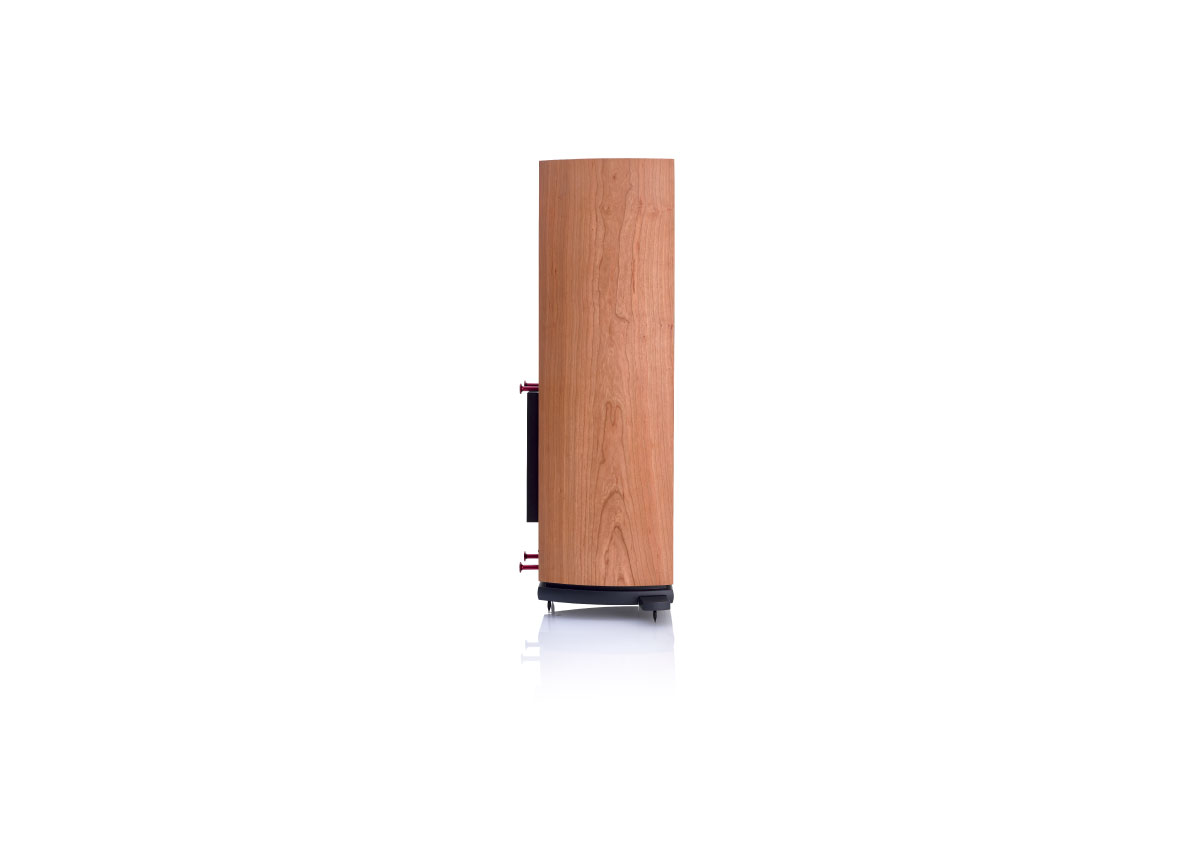

Category Floor Standing Speakers ATC SCM40A / CHERRY
ATC
SCM40A / CHERRY

New ATC designed and built dual suspension 25mm soft dome HF unit with precision alloy wave guide. ATC Soft Dome mid-range driver. ATC 164mm short coil bass driver. All drive units incorporate massive optimised motor assemblies. On-board grounded source 242 watt Class A/B Tri-amplifier. Active crossover filters and overload protection. 6 year warranty.

ราคาปกติ :
฿352,000
ราคาพิเศษ :
฿316,800

Specifications


Drivers: HF ATC 25mm dual suspension Tweeter, Mid 75mm ATC Soft Dome, LF ATC 164mm SC

Matched Response: ±0.5dB

Frequency Response (-6dB): 48Hz-22kHz

Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical

Max SPL: 112dB

Crossover Frequencies: 380Hz & 3.5kHz

Connectors: Male XLR

Input sensitivity : 1V

Filters : 4th Order critically damped with phase compensation.

Overload Protection : Active FET momentary gain reduction.

Fault Protection : DC fault protection and thermal trip. Fault indication on rear panel mounted LED.

Amplifier Output: 150W LF, 60W MF, 32W HF

Cabinet Dimensions (HxWxD): 980 x 370 x 344mm (inc. foot plinth & amp, spikes add 25mm to height, grill adds 34mm to depth)

Weight: 36kg
