Built-in Phono Stage

The built-in phono stage is a high specification pre-amplifier. It is designed to amplify the signal from a moving magnet cartridge to a suitable level for all line level inputs of an appropriate system or audio amplifier. This allows simple connection to a wide variety of products using either the standard twin phono to phono lead (supplied) or phono to 3.5 mm plug (not supplied).

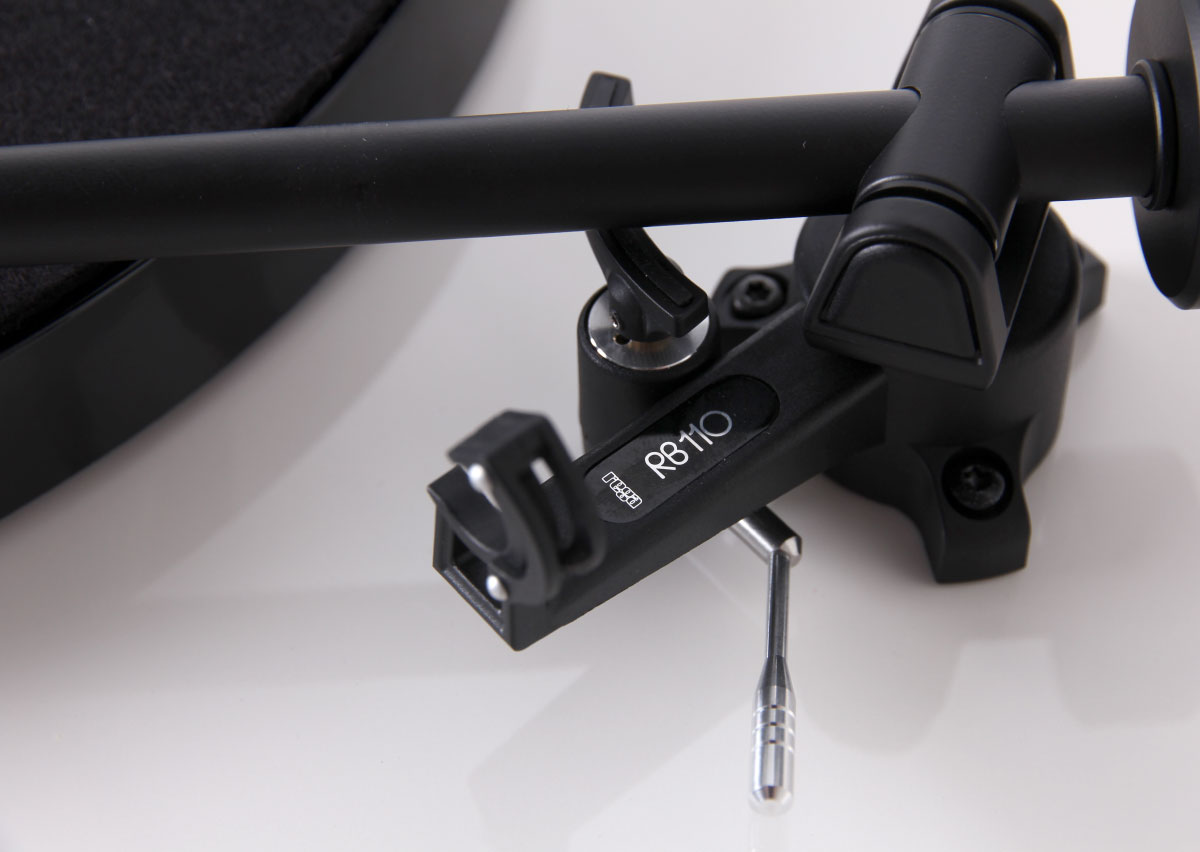

Tonearm

Brand new RB110 tonearm built with the new Rega designed, bespoke, ultra low friction bearings (Patent Pending). New bias assembly and integrated arm clip. Includes automatic bias adjustment negating the need for the user to set bias, making this the most ‘Plug & Play’ turntable we have ever manufactured. New ergonomically, re-designed and stiffer headshell for improved usability and appearance.

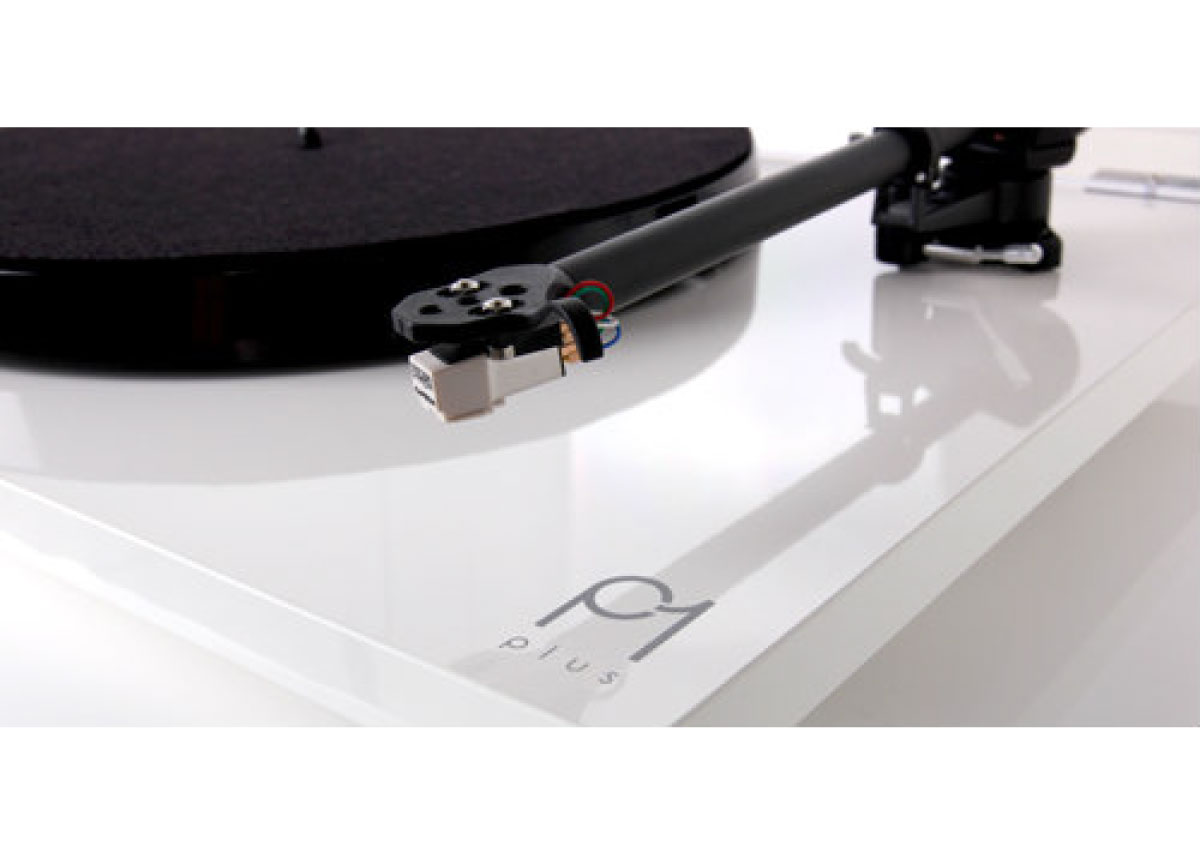

Cartridge

Rega Carbon moving magnet cartridge supplied fitted as standard.

Motor

24v, synchronous AC motor with a new motor PCB and aluminium pulley offering low noise and better speed stability.

Plinth

Brand new Thermoset, gloss laminated plinth with vastly improved appearance and new ergonomically positioned on/off switch located on the underside. Two stunning plinth finishes available, gloss black and gloss white.

Central Bearing housing

Re-designed brass main bearing, offering improved fit and removing stress on the bearing itself while minimising the transfer of potential energy. (Patent pending)

Platter

23mm, high mass, phenolic platter with improved flywheel effect for improved speed stability.

Re-Designed feet

New improved feet to increase stability and reduce vibration transfer.

Motor cover tray

New motor cover tray with integrated cooling.

Balance Weight

New 111g ‘Plug and Play’ balance weight.

Use only with a Rega PS1 350 mA power supply.

50 Hz: 24 V AC 0.142 mA maximum power consumption 3.4 W.

60 Hz: 24 V AC 0.129 mA maximum power consumption 3.1 W.

Maximum Output Level (3.54 cm/s RMS 45 degrees CBS STR100 Band 6a and 7a): 370-410 mV

Output Impedance: 1 kΩ

Frequency Response (pre-amplifier only): 14 Hz (-3 dB Point) to 100 kHz (-0.6 dB Point)

RIAA Accuracy (pre-amplifier only): (100 Hz to 20 kHz) ± 0.4 dB typically better than ± 0.25 dB

Pre-amplifier Gain: 40 dB

Pre-amplifier Input Loading: 47 kΩ in parallel with 220 pF

Signal to Noise Ratio: -75 dB A-weighted ref maximum output.

Power Requirements: 50 Hz 24 V AC 0.142 mA 3.4 W – 60 Hz 24 V AC 0.129 mA 3.1 W

Dimensions (lid closed) H 11.7 x W 44.7 x D 36 cm

Weight 4.35kg
